N40ENTD20.00

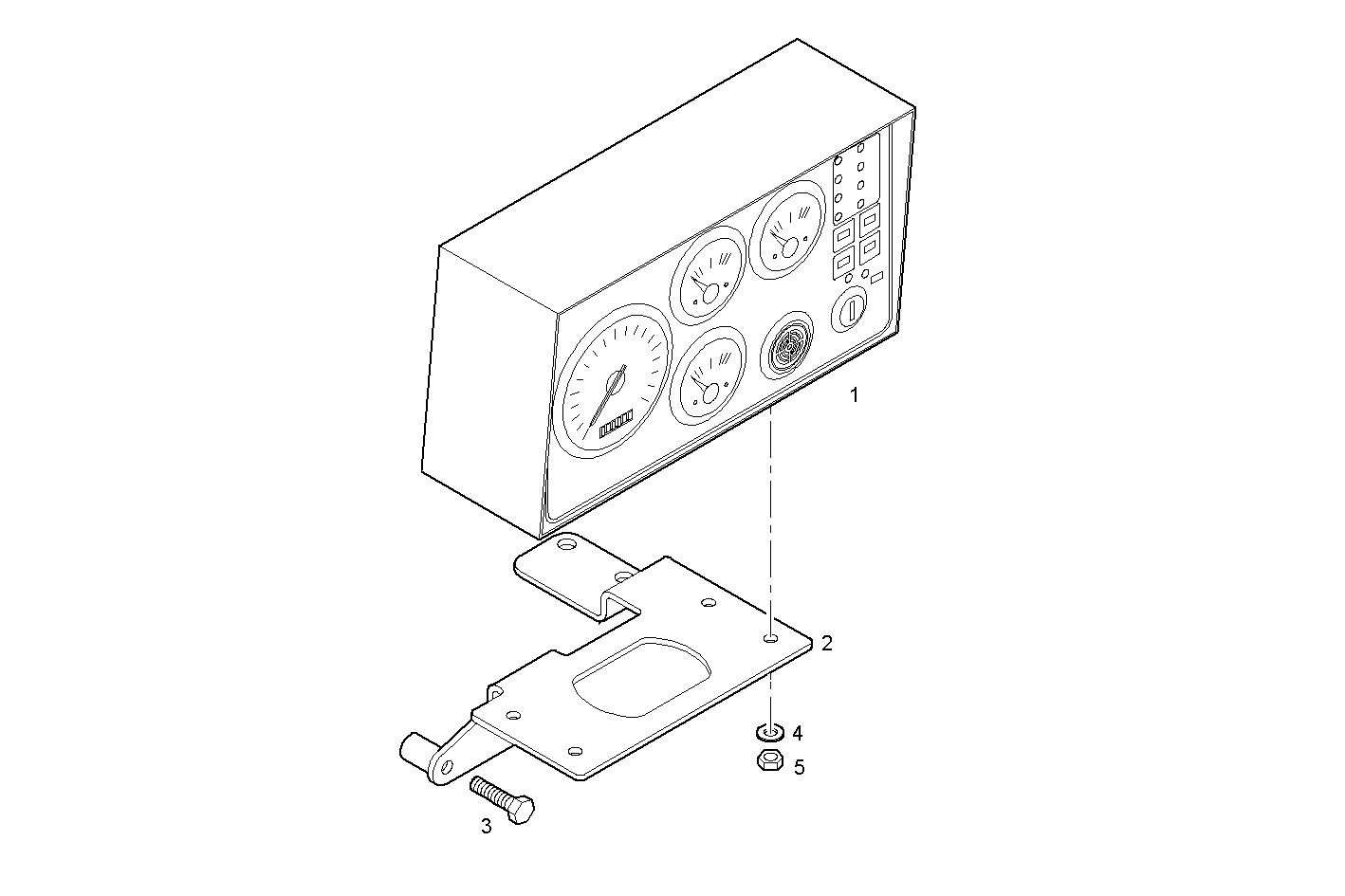

A38770511 PANEL WITH ELECTRICAL INSTRUMENTS - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8038058 | CONTROL BOARD ASSY |
| 2 | 8040409 | SUPPORT |
| 3 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 4 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 5 | 17037831 | NUT M6X1 |
