N40ENTD20.00

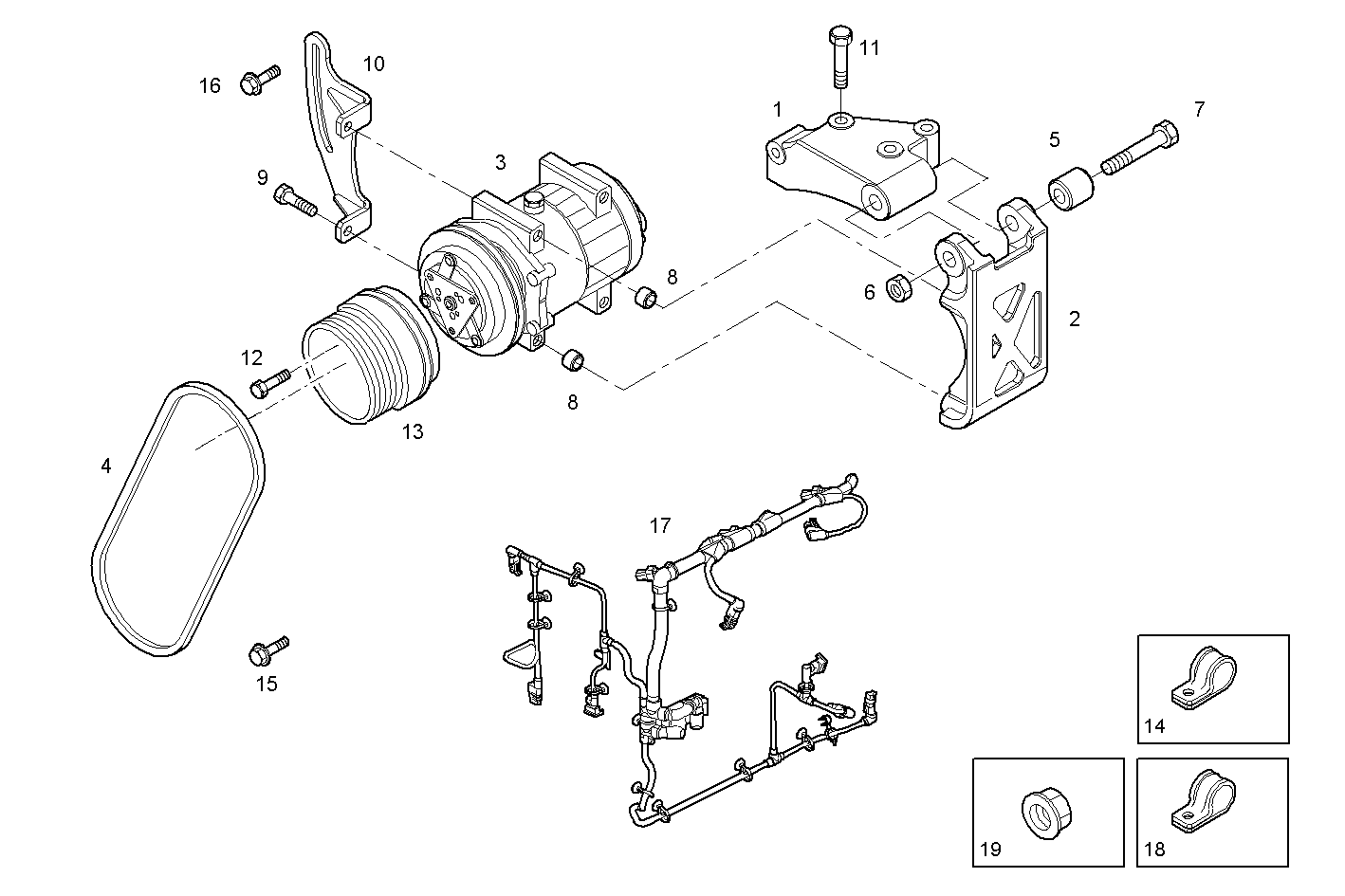

A81000504 COMPRESSOR AIR CONDITIONING

Iveco/FPT COMPRESSOR AIR CONDITIONING

Item Part number Description
1 500387902 SUPPORT
2 500387643 SUPPORT
3 500388059 AIR COND.COMPRESS.
4 500337152 V-BELT L=850 MM
5 98433179 SPACING BAR
6 17044921 HEXAGON NUT M12
7 16599724 HEXAGON BOLT M12X130 MM
8 4895227 DOWEL PIN
9 504056183 HEXAGON BOLT M8x1.25x105 MM
10 500387903 TENSIONER
11 4899144 HEXAGON BOLT M10X1,5X50 MM
12 16586324 HEXAGON BOLT M8X1,25X20 MM
13 8037201 PULLEY
14 17315190 FASTENING BRACKET ENGINE
15 16675835 HEXAGON BOLT M10X30 MM
16 4899147 HEXAGON BOLT
17 504018145 WIRE/CABLE
18 17315390 FASTENING BRACKET
19 17044625 HEXAGON NUT M6
