Catalogue Menu
N40ENTD20.00

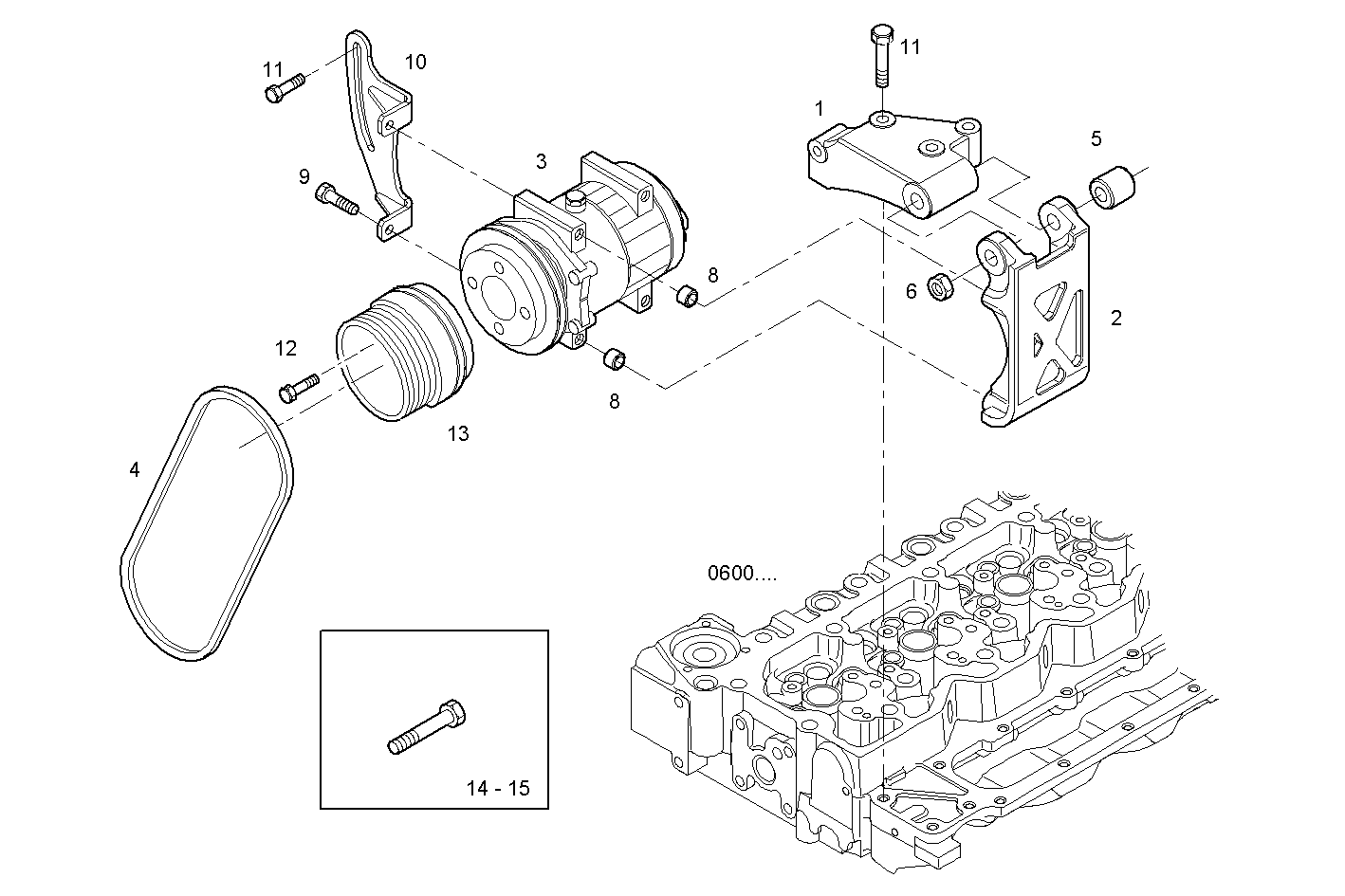

A81010504 COMPRESSOR AIR CONDITIONING - 12V X PUL. RAPP. 1.41
| Item | Part number | Description |
|---|---|---|
| 1 | 500387902 | SUPPORT |
| 2 | 500387643 | SUPPORT |
| 3 | 504020809 | AIR COND.COMPRESS. |
| 4 | 98465812 | ALTERNATOR BELT L=950 MM |
| 5 | 98433179 | SPACING BAR |
| 6 | 17044921 | HEXAGON NUT M12 |
| 7 | 16599724 | HEXAGON BOLT M12X130 MM |
| 8 | 4895227 | DOWEL PIN |
| 9 | 504056183 | HEXAGON BOLT M8x1.25x105 MM |
| 10 | 500387903 | TENSIONER |
| 11 | 16675835 | HEXAGON BOLT M10X30 MM |
| 12 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 13 | 8037201 | PULLEY |
| 14 | 4899144 | HEXAGON BOLT M10X1,5X50 MM |
| 15 | 4899147 | HEXAGON BOLT |
