N40ENTM25.10

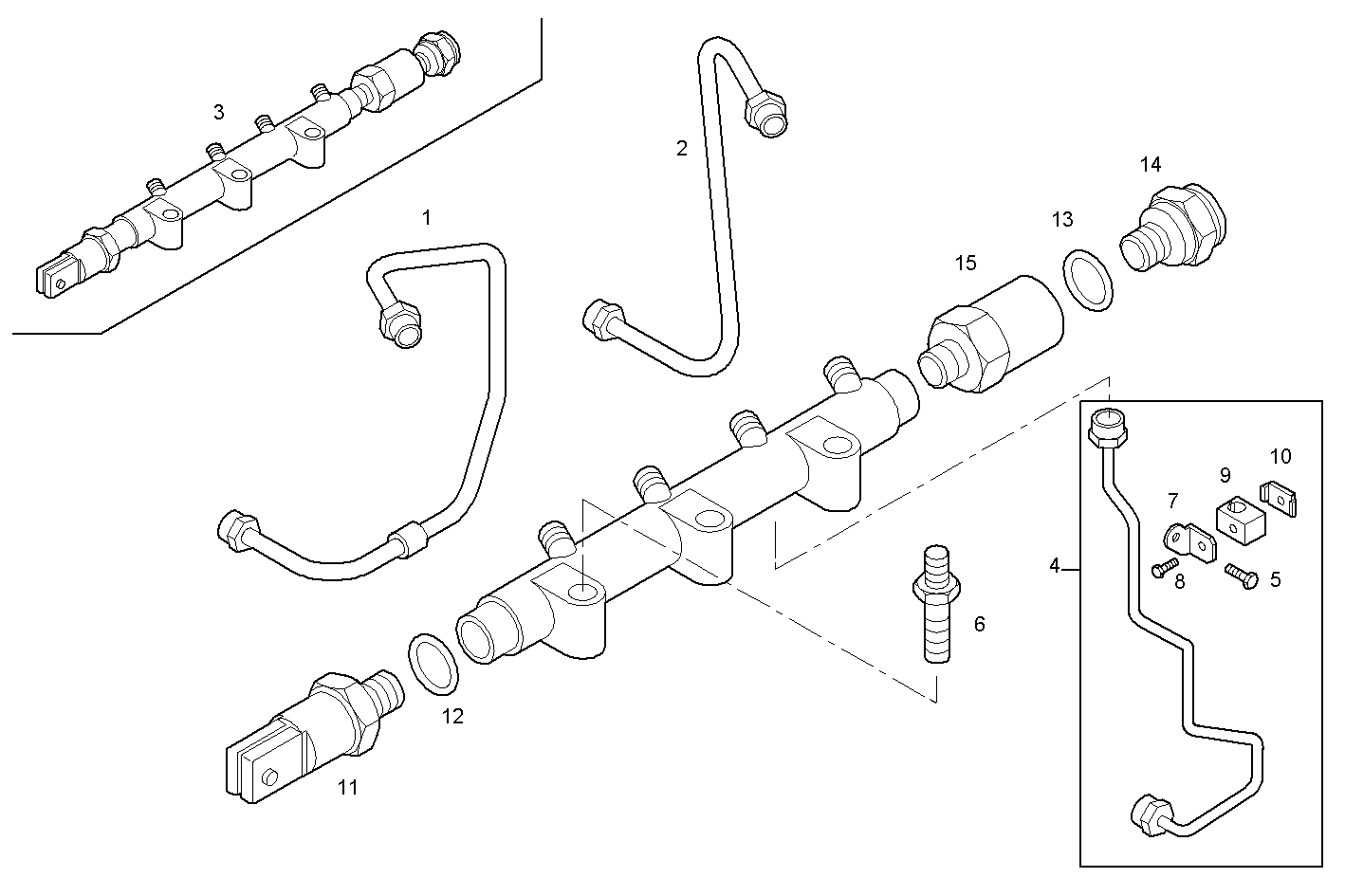

1405.010 HYDRAUL. ACCUMULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 2830615 | FUEL LINE |
| 2 | 4899323 | FUEL LINE |
| 3 | 4899337 | HYDRAULIC CYLINDER ASSY |
| 4 | 8038800 | FUEL LINE ASSY |
| 5 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 6 | 504053874 | HEXAGON BOLT |
| 7 | 8032120 | RETAINER |
| 8 | 4895310 | HEXAGON BOLT |
| 9 | 4894674 | RUBBER PAD |
| 10 | 4898195 | CONNECTING PLATE |
| 11 | 2831362 | SENSOR [FROM # 189669] |
| 12 | 500372236 | WASHER |
| 13 | 16508360 | WASHER 18x22x1,5 |
| 14 | 4899828 | THREADED UNION |
| 15 | 4899804 | VALVE |
