N40ENTM25.10

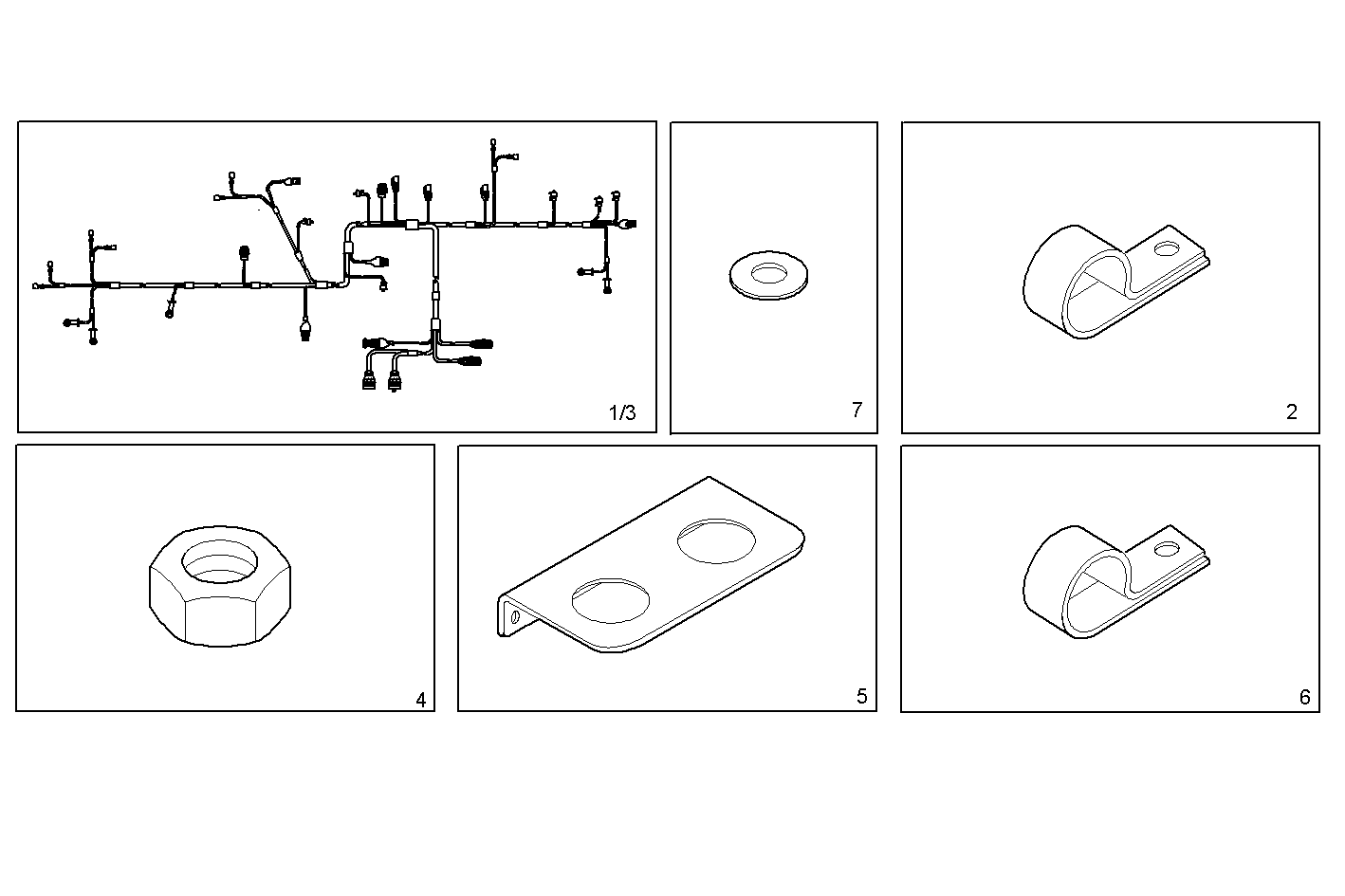

1730.070 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 8036966 | ENGINE HARNESS ASSY [UP TO 01-07-05] |
| 2 | 10450090 | PIPE CLIP Ø8 MM |
| 3 | 8041500 | ENGINE HARNESS ASSY [FROM 02-07-05] |
| 4 | 16750125 | HEXAGON NUT M6 |
| 5 | 8035818 | PLATE |
| 6 | 10450590 | PIPE CLIP Ø18 MM |
| 7 | 17094724 | WASHER Ø6X12 MM |
