N40ENTM25.10

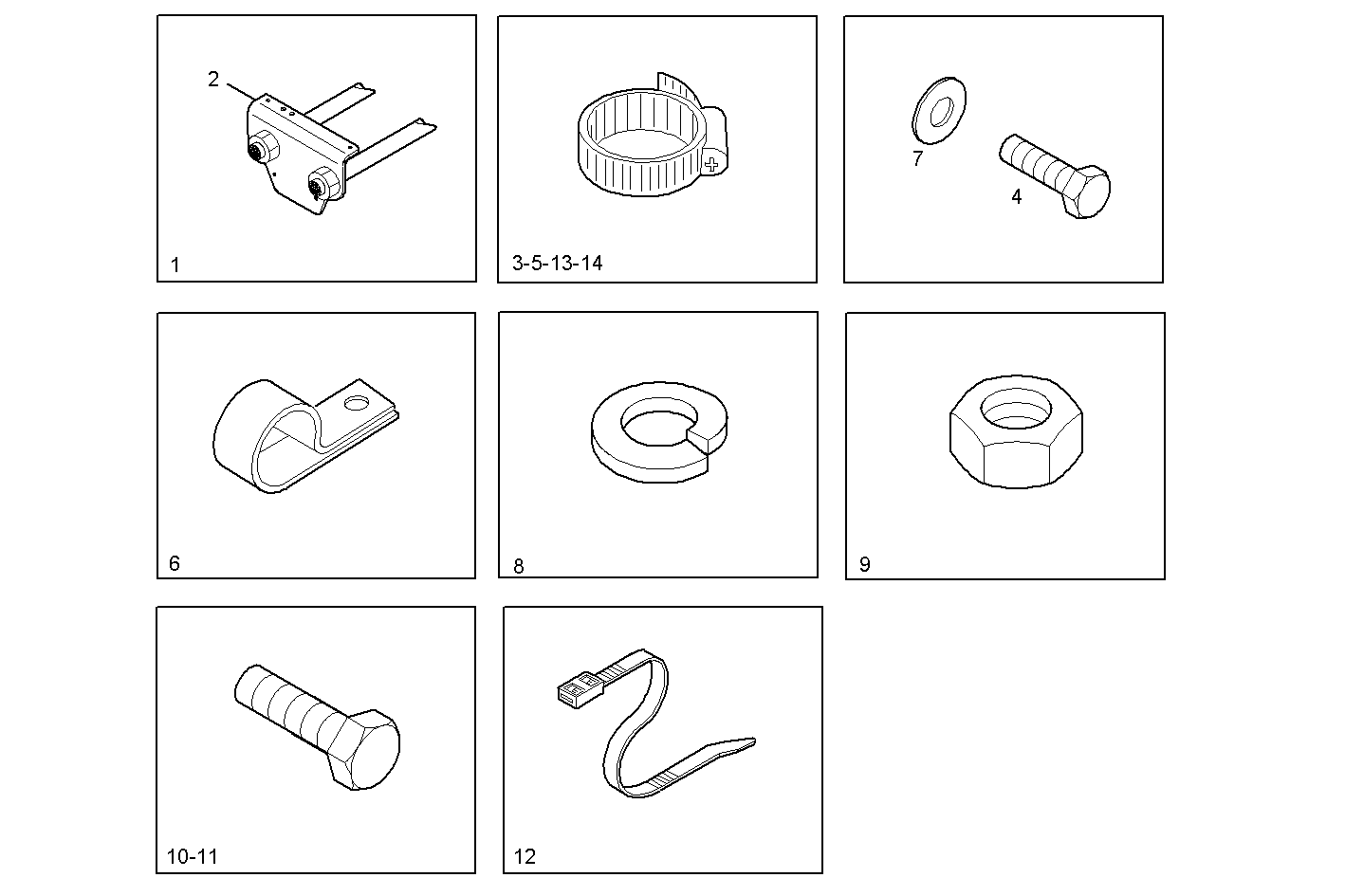

1730.071 ENGINE CABLE [FROM 15/09/08] [FROM 15/09/08]
| Item | Part number | Description |
|---|---|---|
| 1 | 8051231 | ENGINE HARNESS |
| 2 | 8035818 | PLATE |
| 3 | 4936277 | CLIP [up to 03-97] |
| 4 | 17458134 | SCREW M12X1,75X25 MM |
| 5 | 17317190 | PIPE CLIP Ø24 MM |
| 6 | 17316690 | FASTENING BRACKET Ø20,5 MM |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17089074 | SPRING WASHER Ø6 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 12 | 14560187 | CABLE STRAP |
| 13 | 10450590 | PIPE CLIP Ø18 MM |
| 14 | 10450090 | PIPE CLIP Ø8 MM |
