N40ENTM25.10

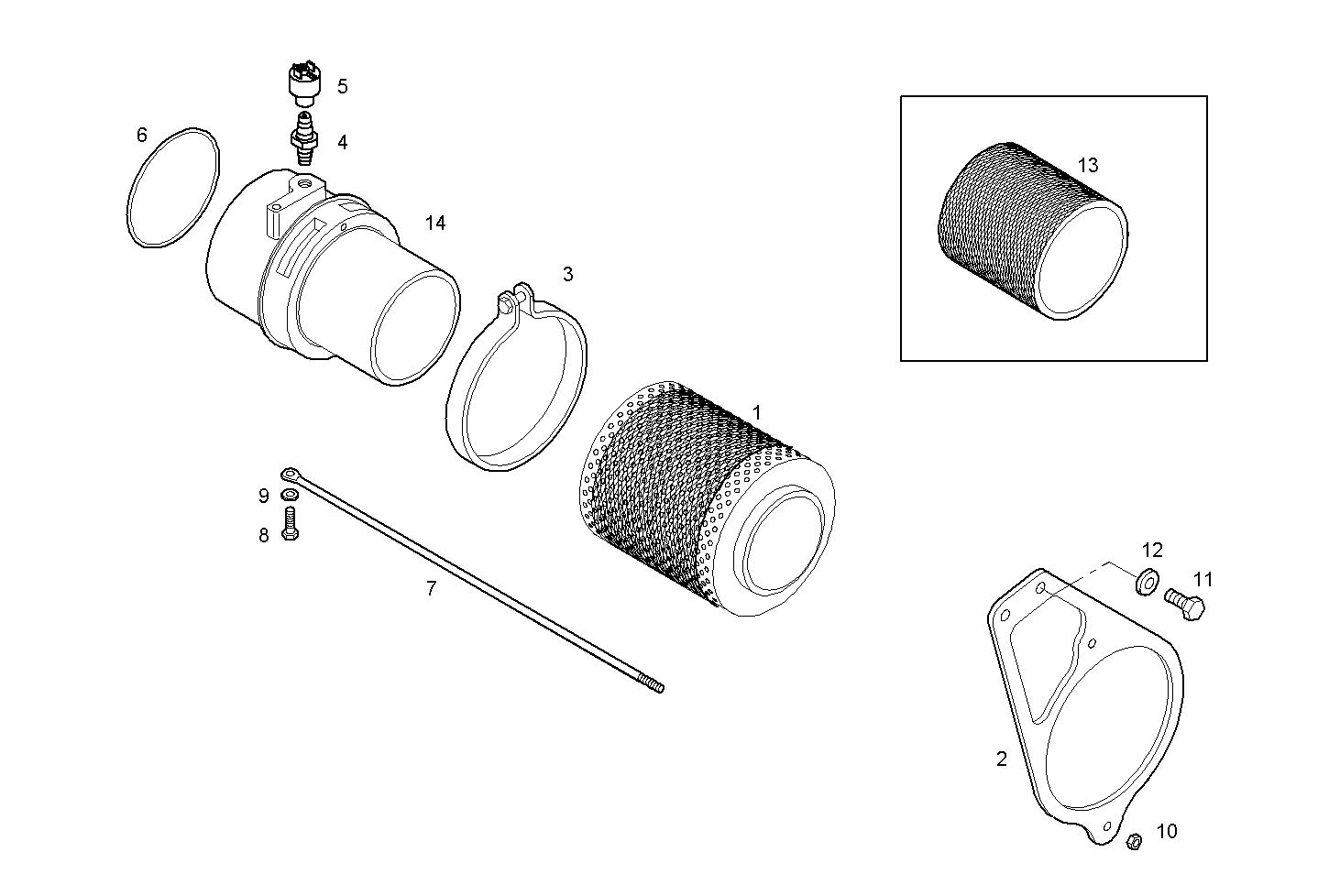

2210.055 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8039403 | AIR CLEANER ASSY [FROM 15-02-05] |
| 2 | 8036234 | RETAINER |
| 3 | 17770599 | CLIP DIA 120 |
| 4 | 8009522 | PIPE SOCKET |
| 5 | 8027423 | CHOCKED FILTER INDIC. |
| 6 | 17291381 | O-RING Ø98,02 MM SP=3,53 MM |
| 7 | 8036282 | TIE ROD M6 |
| 8 | 16603677 | HEXAGON BOLT M6X16 MM |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 17967521 | NUT M6X1 |
| 11 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 8039606 | AIR FILTER ELEMENT [FROM 15-02-05] |
| 14 | 8036233 | AIR MANIFOLD |
