N40ENTM25.10

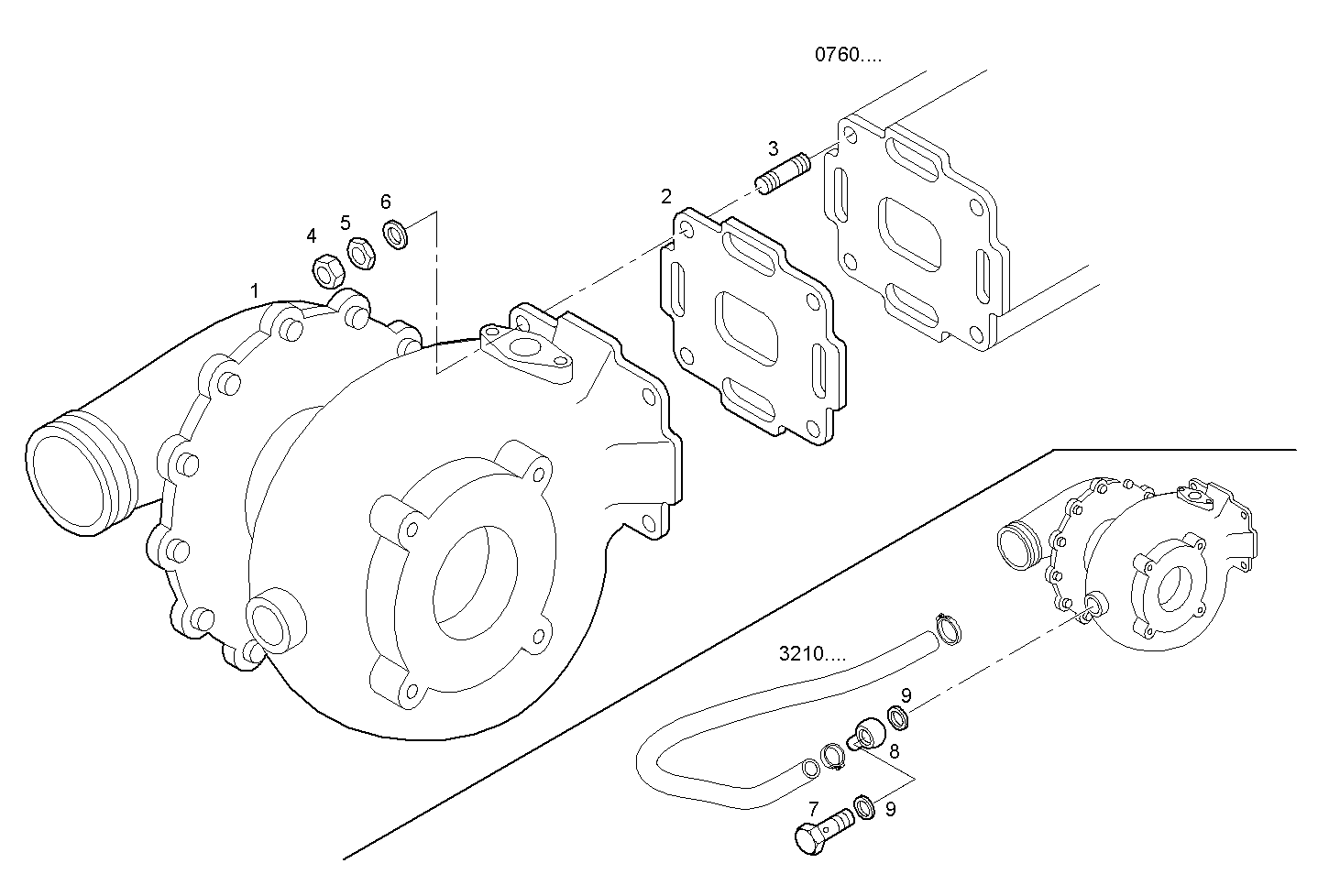

2400.215 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 8036080 | WATER COOL.TURBOCHARGER |
2 | 8027510 | FLAT ENGINE GASKET |
3 | 16731434 | STUD M10X1,5X35 MM |
4 | 16979635 | HEXAGON NUT M10 |
5 | 17038131 | HEXAGON NUT M10 |
6 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
7 | 8094682 | SCREW CONNECTOR |
8 | 8094683 | BANJO COUPLING |
9 | 8094684 | SEAL GASKET |
