N40ENTM25.10

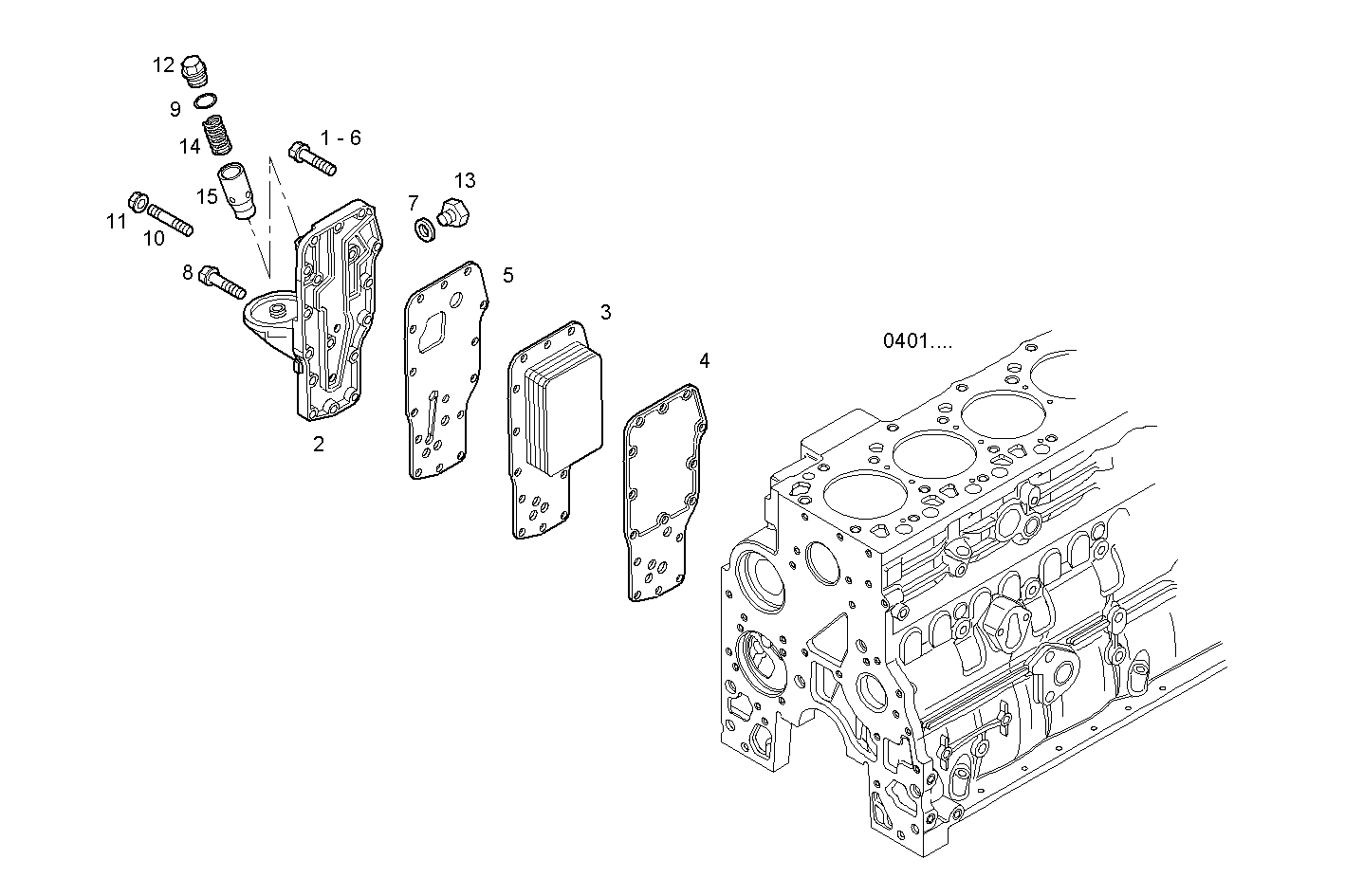

3150.028 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 16586625 | HEXAGON BOLT M8X35 MM |
| 2 | 8032971 | HEAT EXANGER BODY |
| 3 | 4896407 | OIL COOLER |
| 4 | 2830559 | FLAT ENGINE GASKET |
| 5 | 4896409 | FLAT ENGINE GASKET |
| 6 | 16586925 | HEXAGON BOLT M8X50 MM |
| 7 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 8 | 16598524 | SCREW M8X120MM |
| 9 | 4899035 | O-RING |
| 10 | 16744924 | STUD M6X12X16 |
| 11 | 17044625 | HEXAGON NUT M6 |
| 12 | 4895043 | THREADED PLUG |
| 13 | 16992211 | THREADED PLUG M12X1,5 |
| 14 | 4895045 | VALVE SPRING |
| 15 | 4896404 | VALVE HOUSING |
