N40ENTM25.10

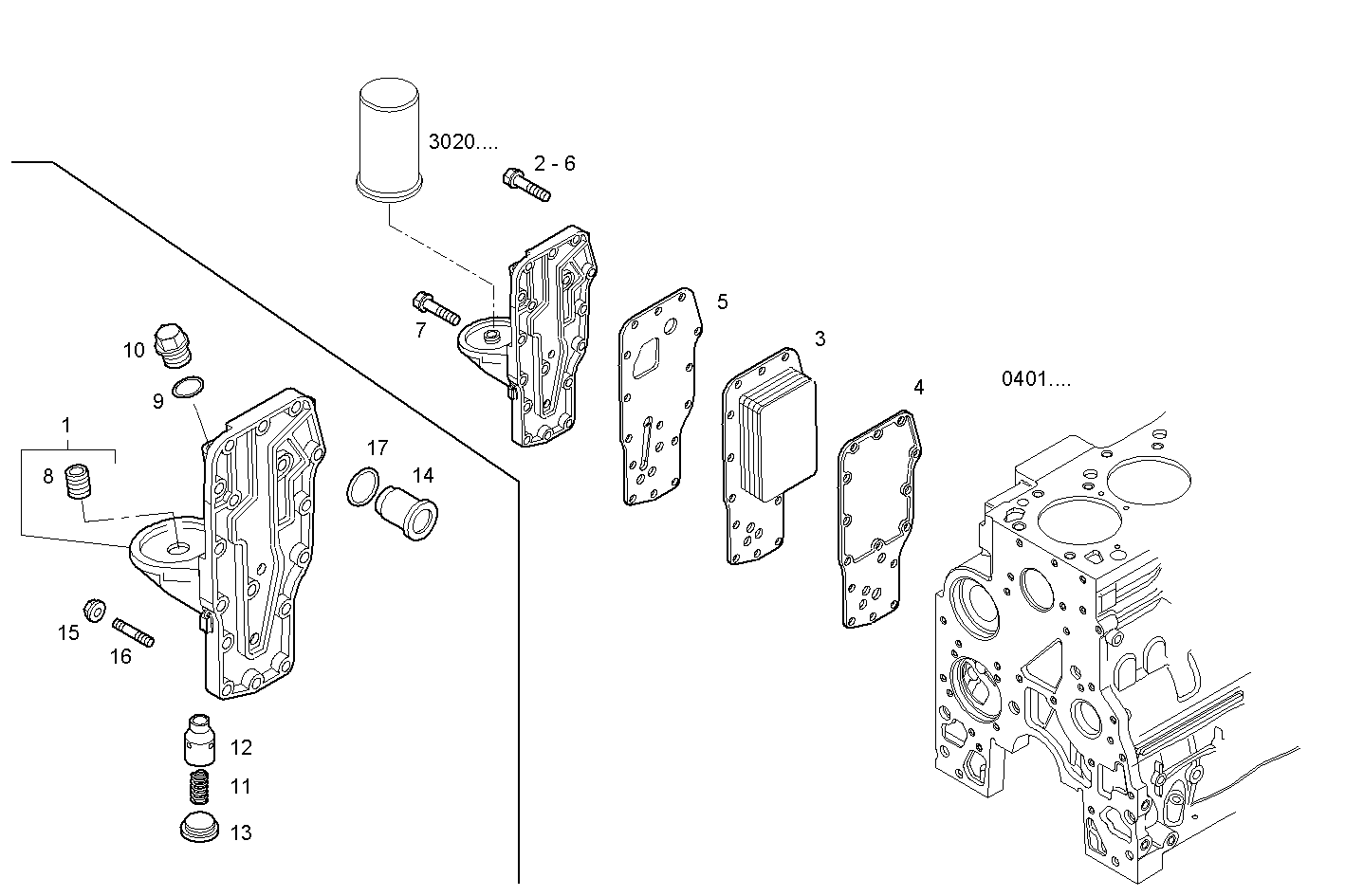

3150.029 OIL - WATER HEAT EXCHANGER [FROM # 213041] [FROM # 213041]
| Item | Part number | Description |
|---|---|---|
| 1 | 504132143 | HEAT EXANGER BODY ASSY |
| 2 | 4899019 | HEXAGON BOLT M8X35 MM |
| 3 | 504047629 | OIL COOLER |
| 4 | 2830559 | FLAT ENGINE GASKET |
| 5 | 2831317 | FLAT ENGINE GASKET |
| 6 | 4899041 | HEXAGON BOLT |
| 7 | 16598324 | HEXAGON BOLT M8X100 MM |
| 8 | 4893391 | THREADED UNION |
| 9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 11 | 4895045 | VALVE SPRING |
| 12 | 4896404 | VALVE HOUSING |
| 13 | 504096409 | THREADED PLUG ASSY [FROM # 155900] |
| 14 | 4896410 | VALVE |
| 15 | 17044625 | HEXAGON NUT M6 |
| 16 | 16744924 | STUD M6X12X16 |
| 17 | 17916280 | O-RING [FROM # 155900] |
