Catalogue Menu
N40ENTM25.10

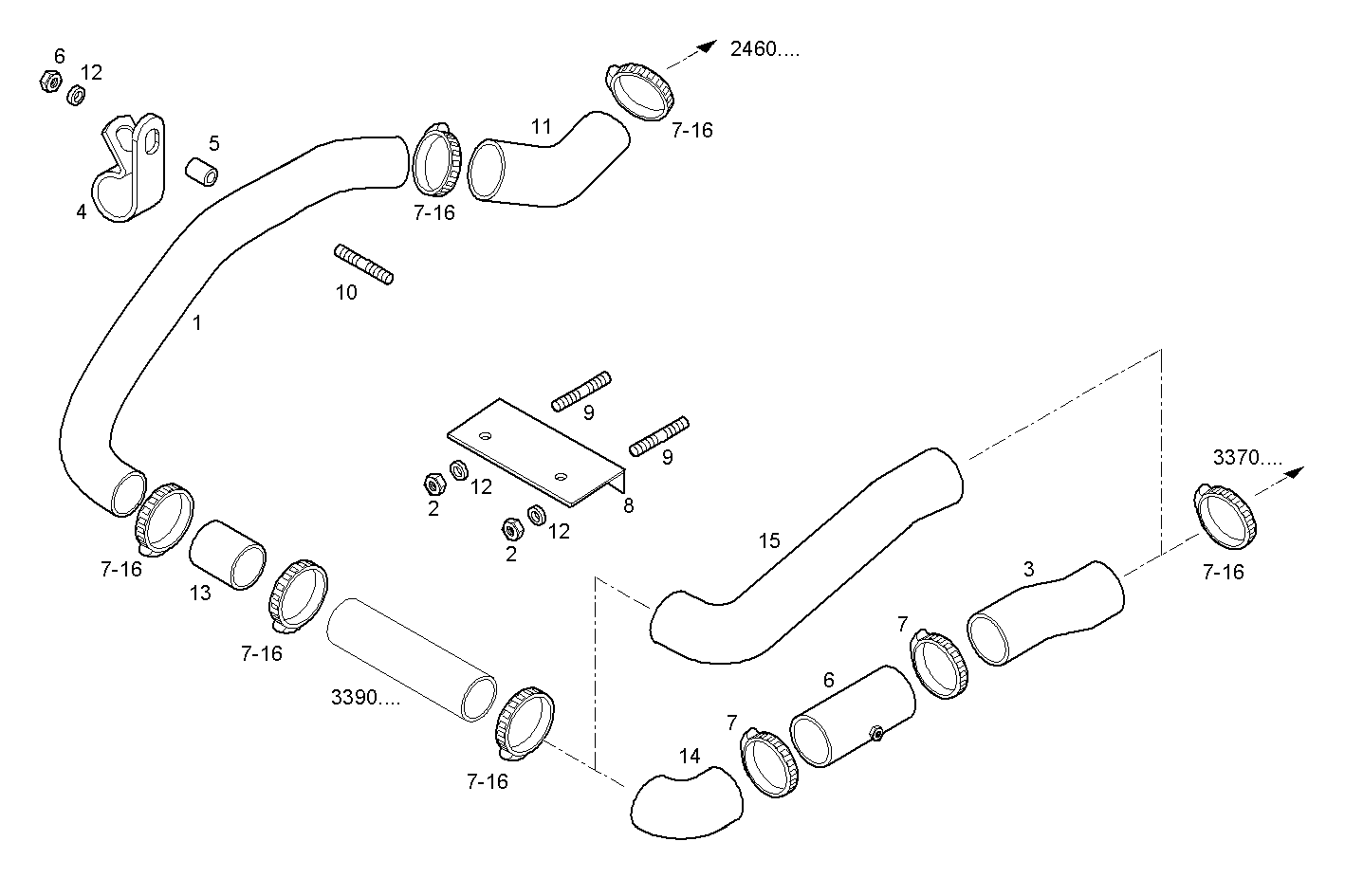

3390.093 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8034458 | SEA WATER PIPE |
| 2 | 17038131 | HEXAGON NUT M10 |
| 3 | 8106646 | RUBBER SLEEVE |
| 4 | 8034457 | CLIP |
| 5 | 8015577 | SPACING BAR SP=8,00 MM |
| 6 | 8039376 | SEA WATER PIPE [UP TO 15/04/08] |
| 7 | 17764893 | CLIP Ø40/60 MM |
| 8 | 8034494 | FASTENING BRACKET |
| 9 | 17368024 | STUD M10X25X30 |
| 10 | 16731224 | STUD M10X25 MM |
| 11 | 8040155 | RUBBER SLEEVE |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
| 14 | 98433319 | RUBBER SLEEVE |
| 15 | 8043385 | RUBBER SLEEVE [FROM 16/04/08] |
