N40ENTM25.10

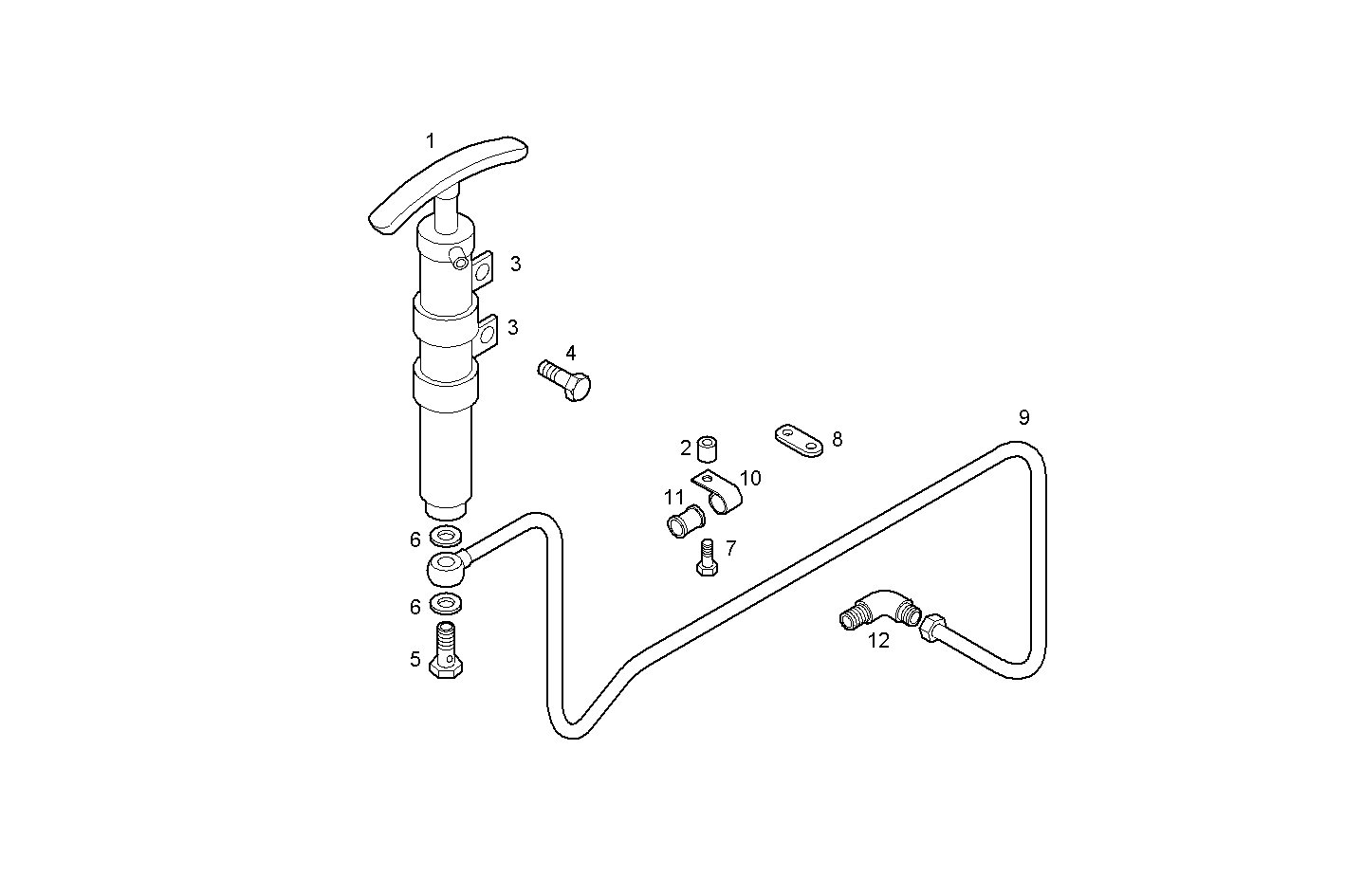

5510.054 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 8039409 | SPACING BAR |
| 3 | 4928851 | CLIP |
| 4 | 16592225 | HEXAGON BOLT M8X55 MM |
| 5 | 4864084 | BANJO BOLT M16X1,5 |
| 6 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 7 | 16673535 | HEXAGON BOLT M8X16 MM |
| 8 | 8008108 | RETAINER |
| 9 | 8039410 | OIL LINE |
| 10 | 4755963 | FASTENING BRACKET |
| 11 | 4755964 | RUBBER PAD |
| 12 | 11219711 | ELBOW COUPLING |
