N40ENTM25.10

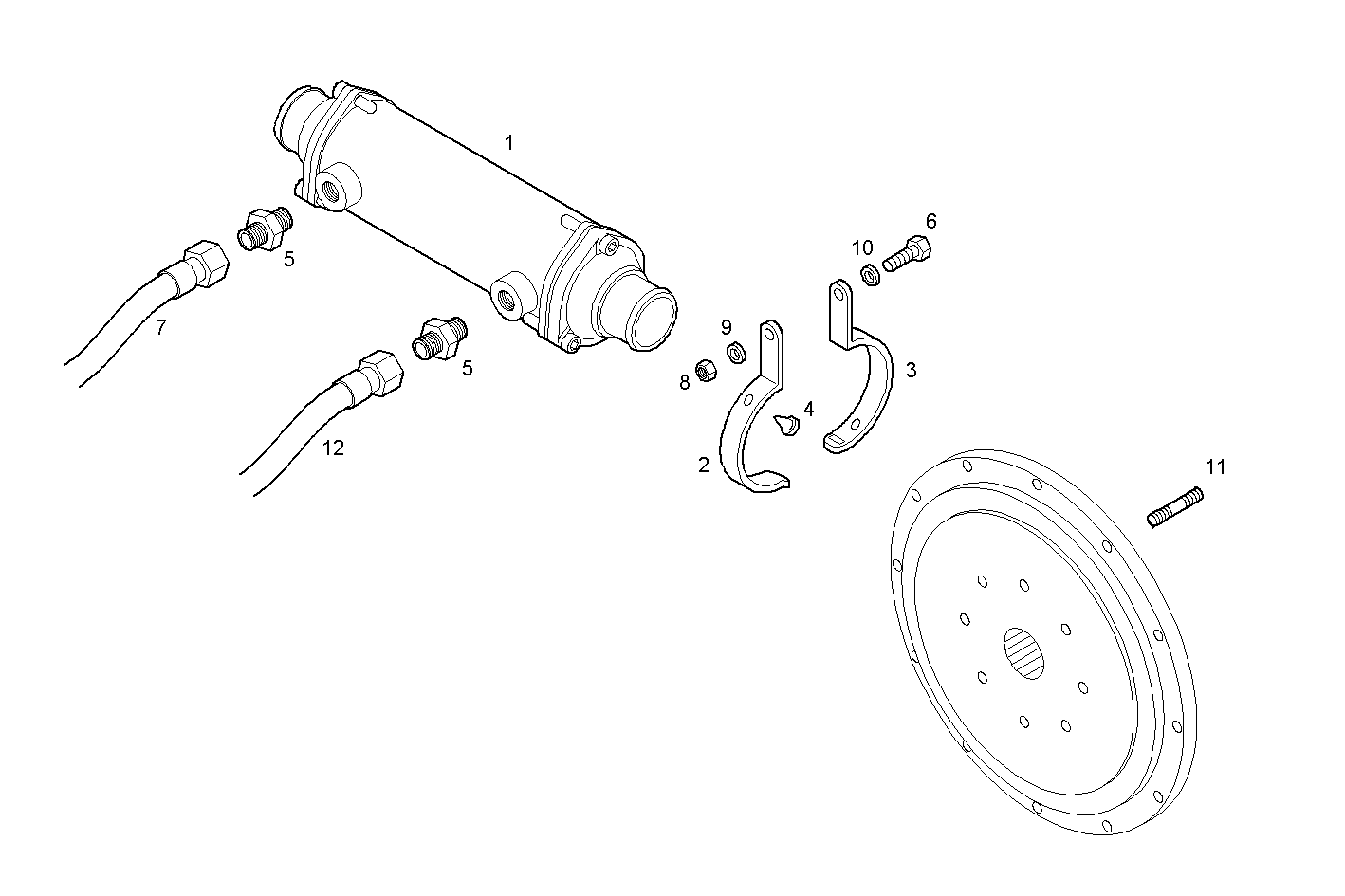

A13720501/01 ARRANGED FOR TM MARINE GEAR - 170

Iveco/FPT ARRANGED FOR TM MARINE GEAR

Item Part number Description
1 8034070 MARINE GEAR OIL HEAT EXCH
2 8034488 RETAINER
3 8034489 RETAINER
4 1366290 RUBBER LUG
5 4935465 PIPE SOCKET
6 16607625 SCREW M10X25
7 4935778 OIL HOSE
8 17038131 HEXAGON NUT M10
9 17090174 SPRING WASHER Ø10X20 MM
10 17095004 WASHER Ø10X18X2 MM
11 17368024 STUD M10X25X30
12 4935779 HOSE
