N40ENTM25.10

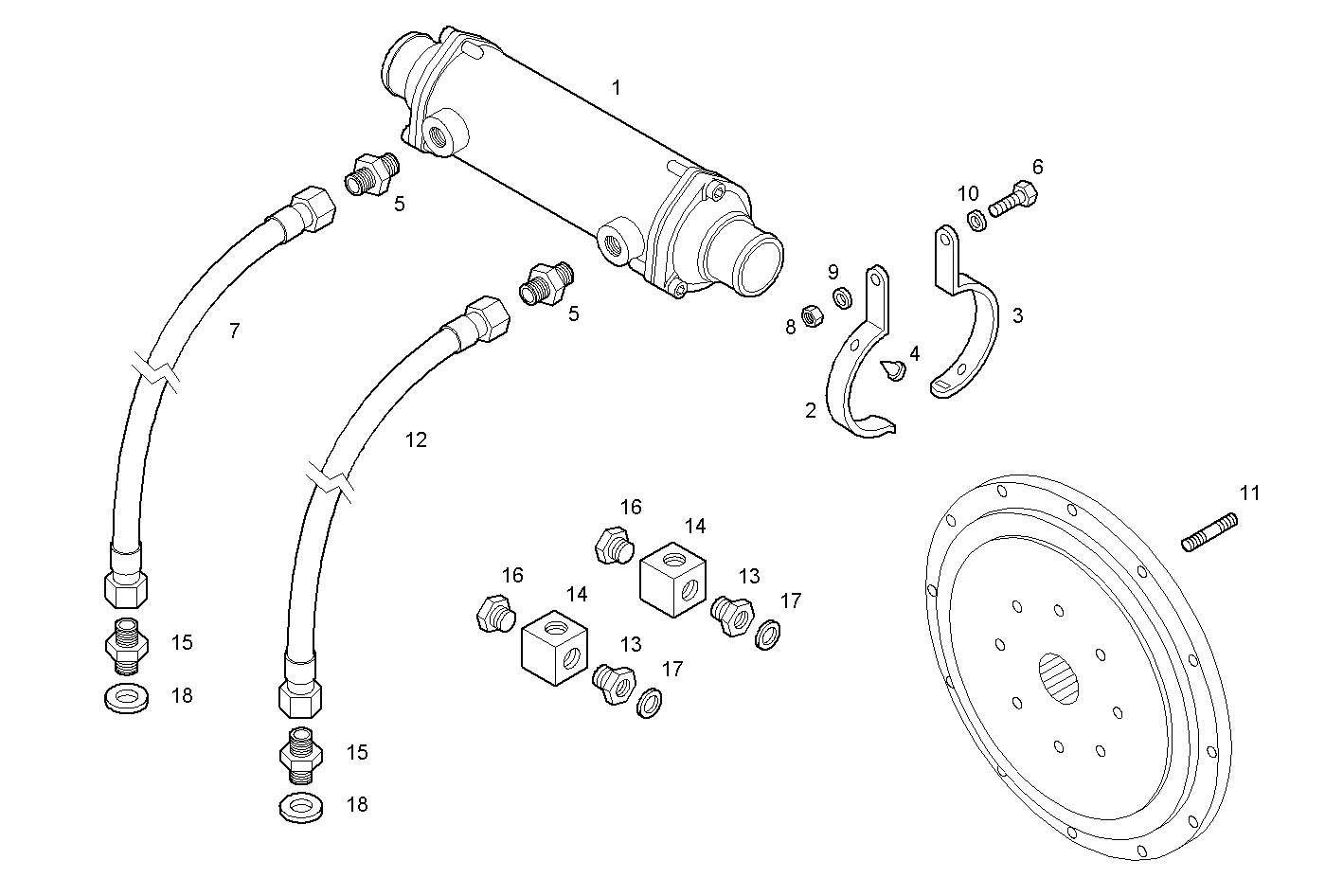

A13790501/01 ARRANGED FOR GEAR ZF - 63A

Iveco/FPT ARRANGED FOR GEAR ZF

Item Part number Description
1 8034070 MARINE GEAR OIL HEAT EXCH
2 8034488 RETAINER
3 8034489 RETAINER
4 1366290 RUBBER LUG
5 4935465 PIPE SOCKET
6 16607625 SCREW M10X25
7 8111496 HOSE
8 17038131 HEXAGON NUT M10
9 17090174 SPRING WASHER Ø10X20 MM
10 17095004 WASHER Ø10X18X2 MM
11 17368024 STUD M10X25X30
12 4935780 OIL HOSE
13 8105826 PIPE SOCKET
14 8107173 PIPE SOCKET
15 8101073 PIPE SOCKET
16 10183317 LOCK PLUG M16X1,5
17 11270460 GASKET Ø17X21X1,5 MM
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
