N40ENTM25.10

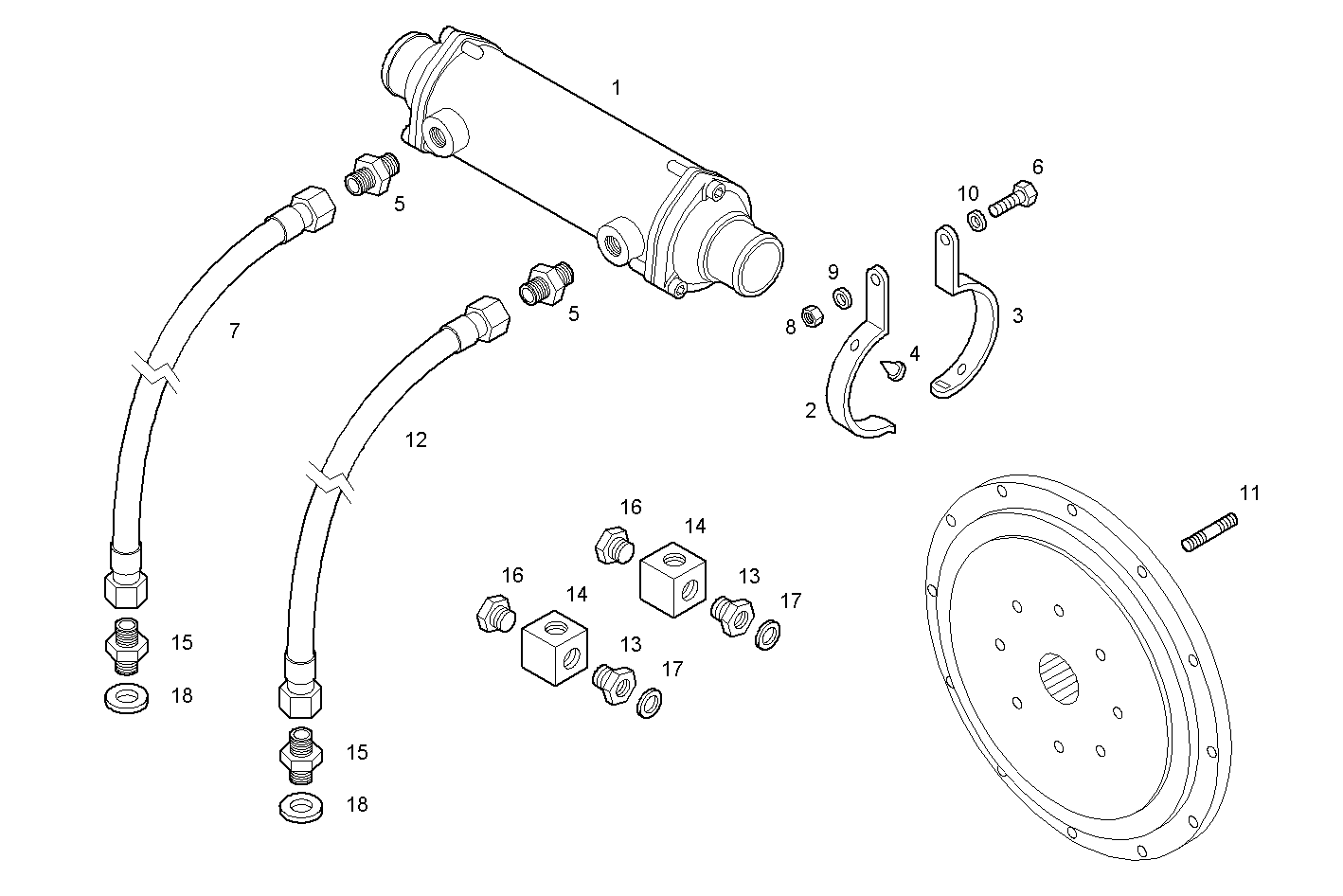

A51790502/02 MARINE GEAR - ZF 63A ratio 1.51:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8034070 | MARINE GEAR OIL HEAT EXCH |
| 2 | 8034488 | RETAINER |
| 3 | 8034489 | RETAINER |
| 4 | 1366290 | RUBBER LUG |
| 5 | 4935465 | PIPE SOCKET |
| 6 | 16607625 | SCREW M10X25 |
| 7 | 8111496 | HOSE |
| 8 | 17038131 | HEXAGON NUT M10 |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 17095004 | WASHER Ø10X18X2 MM |
| 11 | 17368024 | STUD M10X25X30 |
| 12 | 4935780 | OIL HOSE |
| 13 | 8105826 | PIPE SOCKET |
| 14 | 8107173 | PIPE SOCKET |
| 15 | 8101073 | PIPE SOCKET |
| 16 | 10183317 | LOCK PLUG M16X1,5 |
| 17 | 11270460 | GASKET Ø17X21X1,5 MM |
| 18 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
