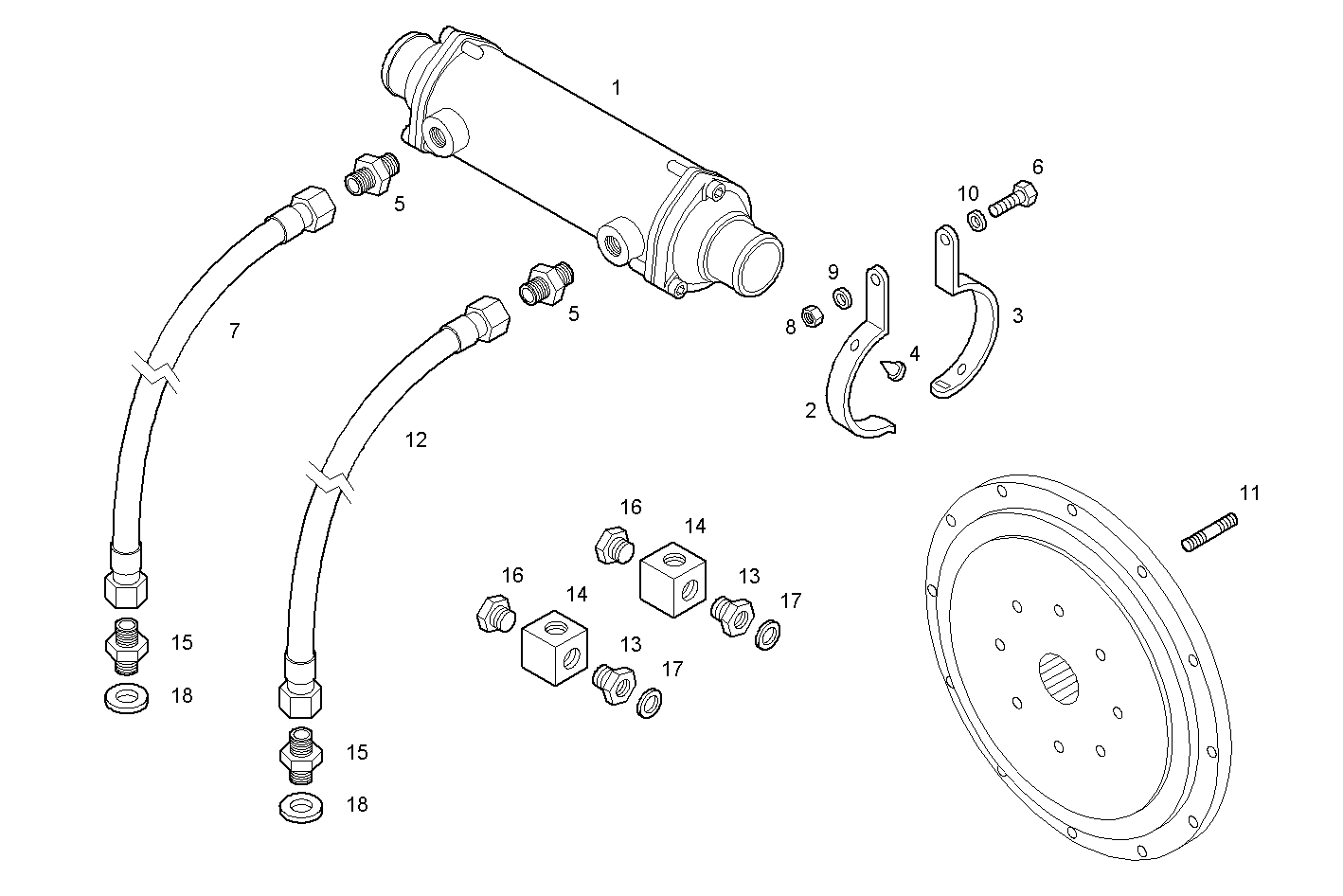

A51890501/02 MARINE GEAR - ZF 63 ratio 1.25:1
Item | Part number | Description |
---|---|---|
1 | 8034070 | MARINE GEAR OIL HEAT EXCH |
2 | 8034488 | RETAINER |
3 | 8034489 | RETAINER |
4 | 1366290 | RUBBER LUG |
5 | 4935465 | PIPE SOCKET |
6 | 16607625 | SCREW M10X25 |
7 | 8111496 | HOSE |
8 | 17038131 | HEXAGON NUT M10 |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
10 | 17095004 | WASHER Ø10X18X2 MM |
11 | 17368024 | STUD M10X25X30 |
12 | 4935780 | OIL HOSE |
13 | 8105826 | PIPE SOCKET |
14 | 8107173 | PIPE SOCKET |
15 | 8101073 | PIPE SOCKET |
16 | 10183317 | LOCK PLUG M16X1,5 |
17 | 11270460 | GASKET Ø17X21X1,5 MM |
18 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
