N45ENTX20.00

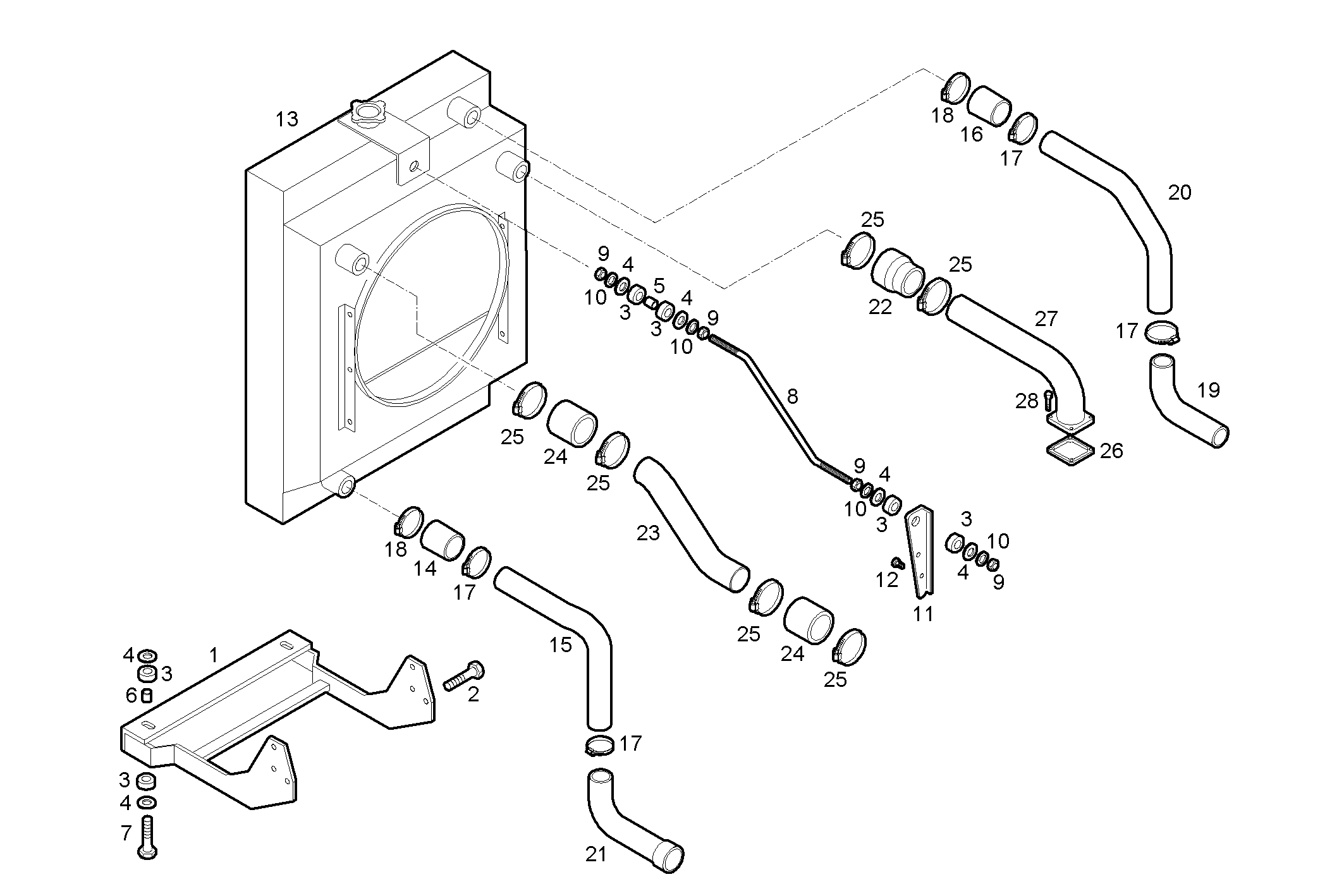

A22010530 RADIATOR 2 CIRCUITS AIR/WATER
| Item | Part number | Description |
|---|---|---|
| 1 | 8038285 | SUPPORT |
| 2 | 16588225 | HEXAGON BOLT M12X40 MM |
| 3 | 741569 | RUBBER LUG |
| 4 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 5 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 6 | 8108634 | SPACING BAR |
| 7 | 16588824 | HEXAGON BOLT M12X1,75X70 MM |
| 8 | 8049985 | TIE ROD |
| 9 | 17038425 | HEXAGON NUT M12 (8) |
| 10 | 17091074 | WASHER Ø12X24X2,8 MM |
| 11 | 8037825 | RETAINER |
| 12 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 13 | 8047686 | WATER RADIATOR |
| 14 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
| 15 | 8049987 | WATER PIPE |
| 16 | 98432897 | WATER HOSE |
| 17 | 17764892 | PIPE CLIP Ø40-60 MM |
| 18 | 17764991 | CLIP Ø50/70 MM |
| 19 | 8039375 | RUBBER SLEEVE |
| 20 | 8049988 | WATER PIPE |
| 21 | 98433199 | CONNECTOR SLEEVE |
| 22 | 8049990 | RUBBER SLEEVE |
| 23 | 8049991 | AIR PIPE/DUCT |
| 24 | 99444730 | WATER HOSE Ø 60 MM |
| 25 | 17765091 | CLIP Ø60/80 MM |
| 26 | 4899921 | FLAT ENGINE GASKET |
| 27 | 8049992 | AIR PIPE/DUCT |
| 28 | 16673735 | HEXAGON BOLT M8X25 MM |
