N45ENTX20.00

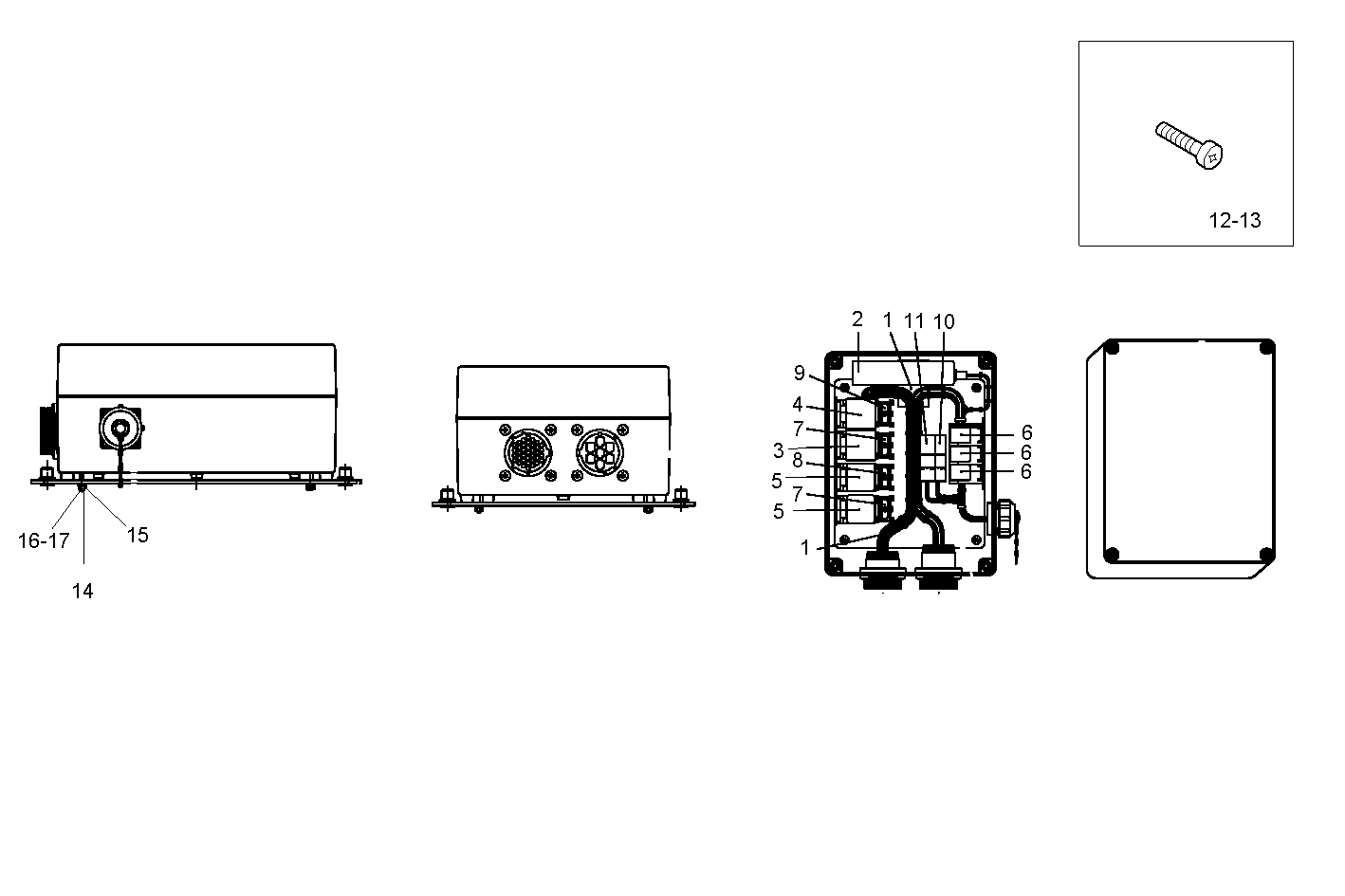

T8052674 RELAY MODULE - components
| Item | Part number | Description |
|---|---|---|
| 1 | 8094987 | WIRE/CABLE |
| 2 | 8097538 | ELECTR.CONTR.UNIT |
| 3 | 8094989 | RESISTOR |
| 4 | 8094990 | RESISTOR |
| 5 | 8094991 | RELAY 12 V |
| 6 | 8094992 | RELAY |
| 7 | 11054890 | FUSE 7,5 A |
| 8 | 11055090 | FUSE 15 A |
| 9 | 11055190 | FUSE 20 A |
| 10 | 8094993 | DIODE 3 A |
| 11 | 8094994 | RESISTOR 120 OHM |
| 12 | 16924015 | CROSS-SLOT SCREW M4X12 |
| 13 | 17029314 | CROSS-SLOT SCREW M3X10 |
| 14 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 15 | 17094724 | WASHER Ø6X12 MM |
| 16 | 16603725 | HEXAGON BOLT M6X20 MM |
| 17 | 17037821 | HEXAGON NUT M6X1 |
