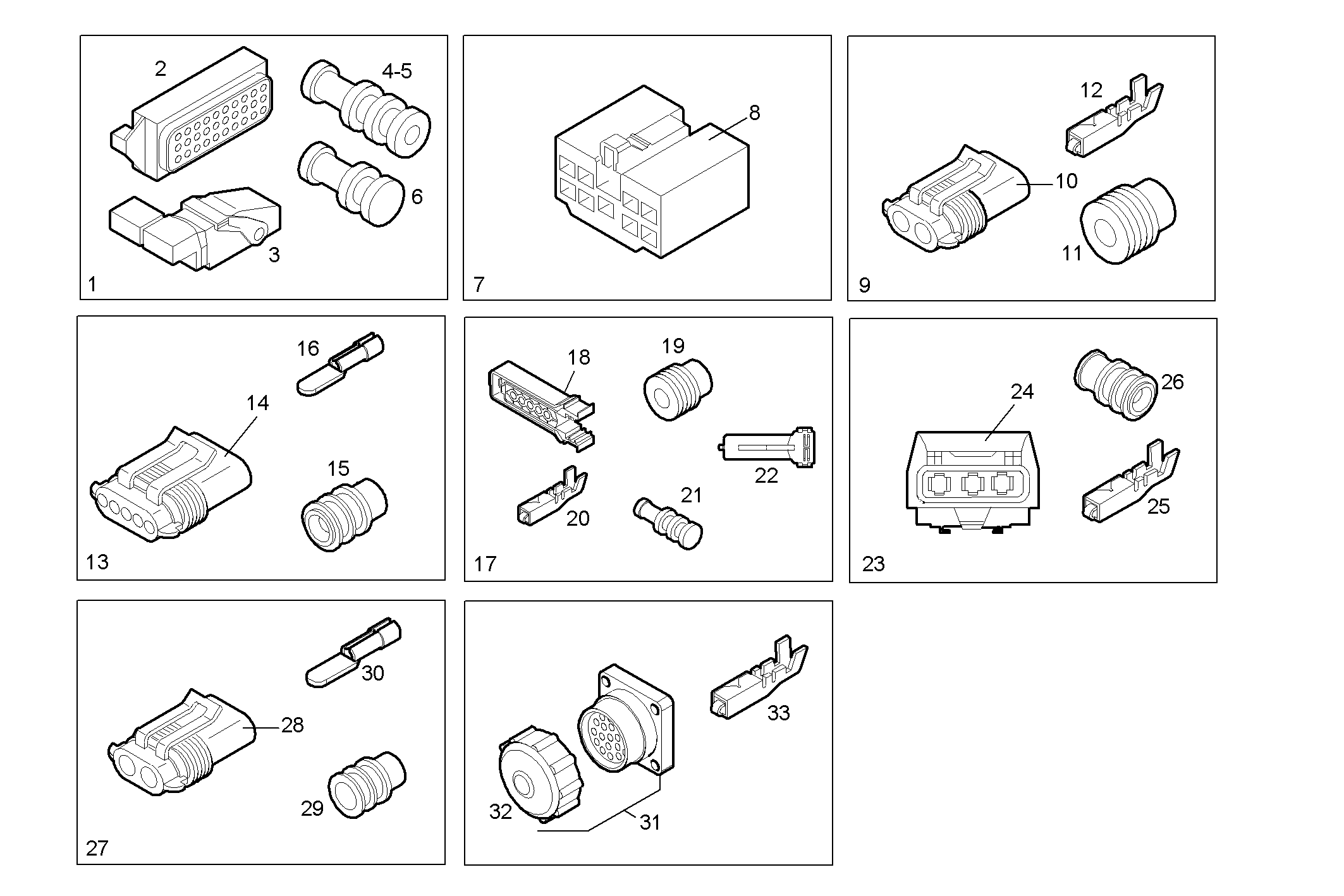

| Item |
Part number |
Description |
|
1 |
8034788 |
CONNECTION ASSY |
|
2 |
500382735 |
WIRE CONNECTOR 89 pin for "E.D.C." |
|
3 |
500382740 |
COVER |
|
4 |
500382761 |
RUBBER BUSH BLUE |
|
5 |
500382764 |
RUBBER BUSH |
|
6 |
500382765 |
RUBBER PLUG |
|
7 |
8031431 |
WIRE CONNECTOR assy 5 pin female |
|
8 |
12267380 |
CONNECTION |
|
9 |
8030571 |
WIRE CONNECTOR assy 2 pin female - packard |
|
10 |
12330587 |
WIRE CONNECTOR |
|
11 |
12329982 |
GASKET |
|
12 |
12330144 |
TERMINAL |
|
13 |
8031313 |
WIRE CONNECTOR assy 5 pin female |
|
14 |
12332087 |
WIRE CONNECTOR |
|
15 |
12332885 |
GASKET |
|
16 |
12331654 |
TERMINAL |
|
17 |
8030193 |
WIRE CONNECTOR assy 5 pin female |
|
18 |
500363489 |
WIRE CONNECTOR |
|
19 |
500363737 |
RUBBER BUSH |
|
20 |
500363580 |
TERMINAL |
|
21 |
500395785 |
RUBBER BUSH |
|
22 |
500363578 |
COVER |
|
23 |
8030575 |
CONNECTION ASSY |
|
24 |
99430234 |
PLUG COUPLING |
|
25 |
12309290 |
TERMINAL |
|
26 |
4835259 |
GASKET |
|
27 |
8030574 |
WIRE CONNECTOR ASSY [UP TO 27-06-05] |
|
28 |
12331387 |
CONNECTION |
|
29 |
4861936 |
RUBBER BUSH YELLOW |
|
30 |
98435372 |
TERMINAL |
|
31 |
8034787 |
WIRE CONNECTOR ASSY |
|
32 |
8033302 |
CAP |
|
33 |
99462549 |
TERMINAL |
