Catalogue Menu
N45ENTX20.00A003

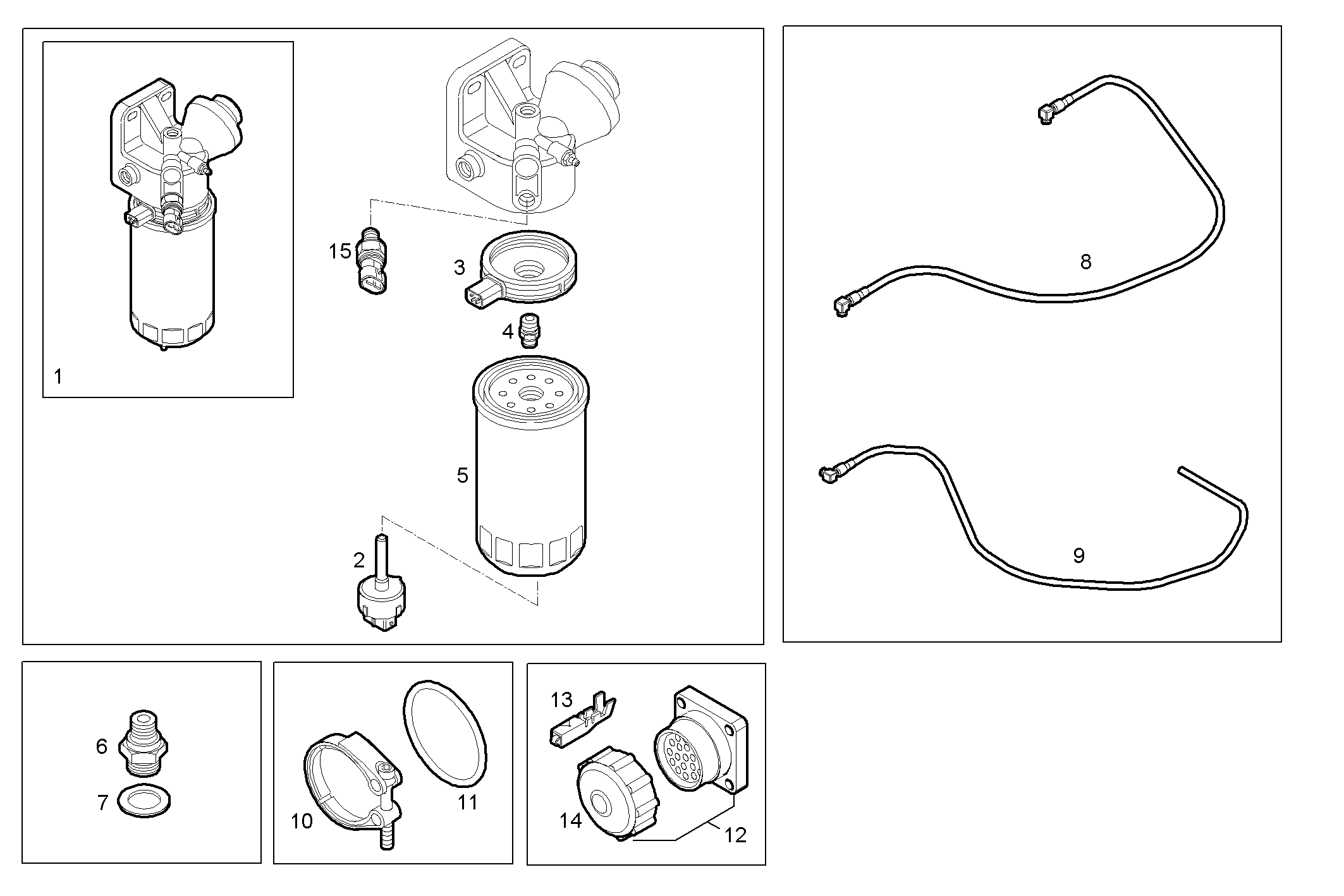

8600.288 ACCESSORIES [FROM 10-09-07] [FROM 10-09-07]
| Item | Part number | Description |
|---|---|---|
| 1 | 504082414 | PREFILTER ASSY [FROM 11-01-05] |
| 2 | 42540203 | SENSOR WATER |
| 3 | 42548584 | HEATER FUEL FILTE |
| 4 | 42545832 | THREADED UNION [FROM 11-01-05] |
| 5 | 2992662 | FUEL FILTER ELEM. |
| 6 | 500371297 | THREADED UNION |
| 7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 500380723 | FUEL LINE |
| 9 | 500363013 | FUEL LINE |
| 10 | 504017427 | CLIP |
| 11 | 17283681 | O-RING Ø45,6 MM SP=2,62 MM |
| 12 | 8034787 | WIRE CONNECTOR ASSY |
| 13 | 99462549 | TERMINAL |
| 14 | 8033302 | CAP |
| 15 | 504064817 | THERMOSWITCH |
