N45ENTX20.00A004

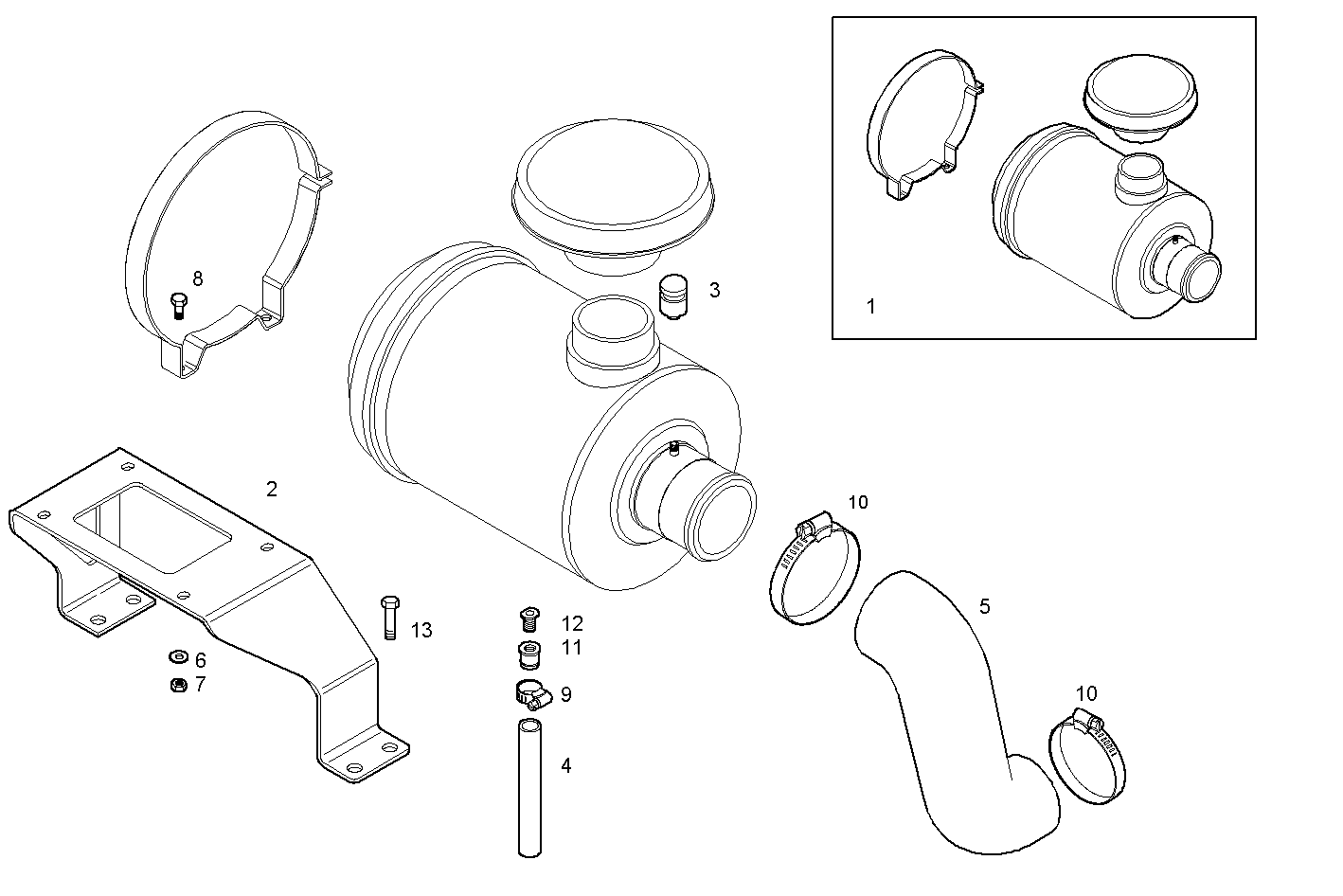

2210.061/01 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8030338 | AIR CLEANER ASSY |
| 2 | 8034013 | FILTER SUPPORT |
| 3 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 4 | 8036887 | RUBBER SLEEVE |
| 5 | 8030766 | FILTER HOSE |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17038131 | HEXAGON NUT M10 |
| 8 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 9 | 18088392 | CLIP Ø16/25 MM |
| 10 | 17765391 | CLIP Ø90/110 MM |
| 11 | 8015133 | PIPE SOCKET |
| 12 | 8015315 | PIPE SOCKET |
| 13 | 16677734 | HEXAGON BOLT M12X25 MM |
