N45ENTY20.00

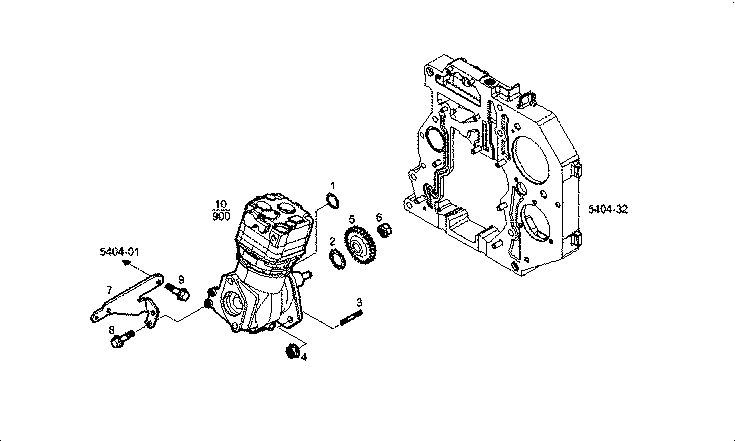

128710 AIR COMPRESSOR - OPTION: A18120502 360CC
Item | Part number | Description |
---|---|---|
1 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
2 | 504016688 | RUBBER GASKET |
3 | 4899069 | STUD M12 |
4 | 4899018 | HEXAGON NUT M12X1,75 |
5 | 5801428523 | GEAR |
6 | 504016500 | NUT |
7 | 4897739 | RETAINER |
8 | 4899020 | HEXAGON BOLT |
9 | 4899068 | HEXAGON BOLT M8X17 MM |
10 | 504016818 | AIR COMPRESSOR ASSY |
