N45ENTY20.00

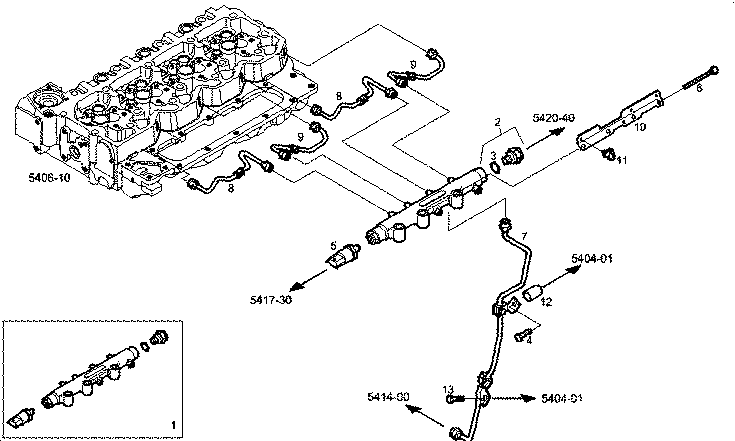

182393 ACCUMULATOR HYDRAUL.
Item | Part number | Description |
---|---|---|
1 | 504347963 | HYDRAULIC CYLINDER |
2 | 42562997 | VALVE |
3 | 42553494 | O-RING |
4 | 16673635 | HEXAGON BOLT M8X1.25X20 |
5 | 504333094 | SENSOR |
6 | 16776925 | HEXAGON BOLT M8X1.25X130 MM |
7 | 504323086 | FUEL LINE |
8 | 504323090 | FUEL LINE |
9 | 504323096 | FUEL LINE |
10 | 5801730517 | RETAINER |
11 | 17059987 | CLIP |
12 | 13605711 | SPACER Ø8,5x18 MM |
13 | 4896884 | HEXAGON BOLT |
