N45ENTY21.00

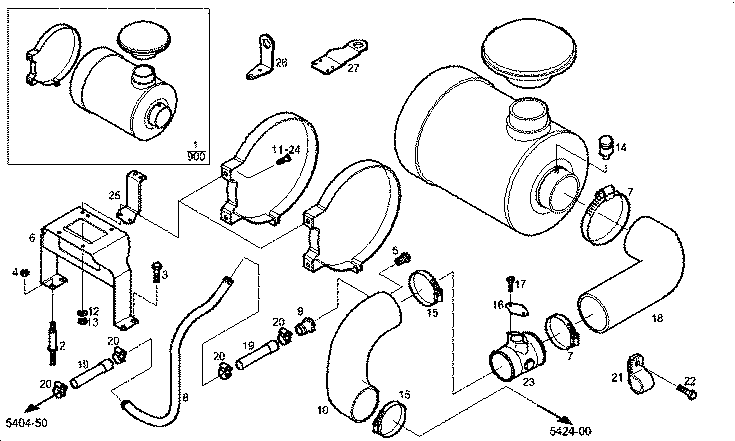

144957 AIR CLEANER - OPTION: A21210563
| Item | Part number | Description |
|---|---|---|
| 1 | 8030338 | AIR CLEANER ASSY |
| 2 | 8048505 | COLLAR SCREW |
| 3 | 16588025 | HEXAGON BOLT M12X30 MM |
| 4 | 17044725 | HEXAGON NUT M8 |
| 5 | 8015315 | PIPE SOCKET |
| 6 | 5801606833 | FILTER SUPPORT |
| 7 | 4788410 | CLIP Ø92/98 MM |
| 8 | 5801609154 | BREATHER PIPE |
| 9 | 8015133 | PIPE SOCKET |
| 10 | 5801606843 | FILTER HOSE |
| 11 | 16607625 | SCREW M10X25 |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17038131 | HEXAGON NUT M10 |
| 14 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 15 | 17765291 | CLIP Ø80/100 MM |
| 16 | 5801583542 | FLANGE |
| 17 | 16978124 | HEXAGON BOLT |
| 18 | 5801606842 | FILTER HOSE |
| 19 | 8036392 | RUBBER SLEEVE [UP TO 06/10/08] |
| 20 | 12173090 | CLIP |
| 21 | 17316992 | CLIP |
| 22 | 17816014 | SPACING BAR Ø8,5X18X5 MM |
| 23 | 5801606844 | CONNECTOR SLEEVE |
| 24 | 16677735 | HEXAGON BOLT M12X25 MM |
| 25 | 5801606836 | RETAINER |
| 26 | 5801609291 | HOOK |
| 27 | 5801609292 | HOOK |
