N45ENTY22.00

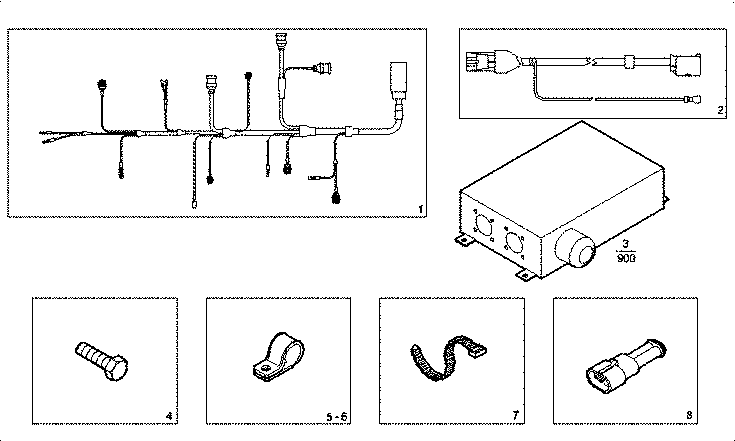

128803 ENGINE CABLE
Item | Part number | Description |
---|---|---|
1 | 8049200 | MOTOR HARNESS |
2 | 8037862 | EXTENSION for alternator |
3 | 8052674 | SWITCHGEAR |
4 | 16597925 | HEXAGON BOLT M8X14 MM |
5 | 10450590 | PIPE CLIP Ø18 MM |
6 | 17317390 | FASTENING BRACKET Ø28 MM x M8 |
7 | 14560187 | CABLE STRAP |
8 | 8045095 | CONNECTION [FROM 12/09/08] |
