N45ENTY23.00

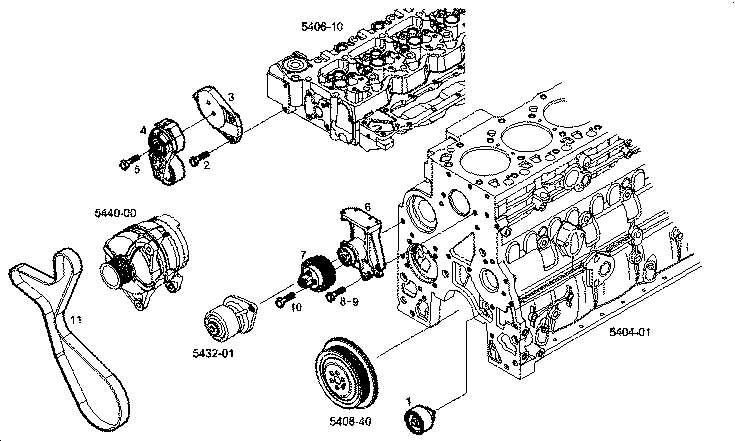

128422 V-BELT - OPTION: A08250501
Item | Part number | Description |
---|---|---|
1 | 504065879 | PULLEY |
2 | 16673835 | HEXAGON BOLT M8X30 MM |
3 | 504044558 | SUPPORT |
4 | 504315781 | BELT TENSIONER |
5 | 16592824 | HEXAGON BOLT M10X70 MM |
6 | 4893217 | SUPPORT |
7 | 4899155 | PULLEY |
8 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
9 | 16587525 | HEXAGON BOLT M10X45 MM |
10 | 16587125 | HEXAGON BOLT M10X25 MM |
11 | 500387660 | V-BELT |
