N45ENTY23.00

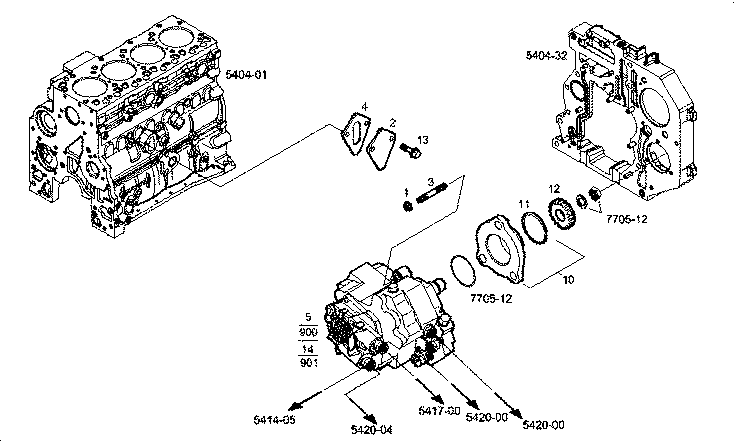

14623 INJECTION
| Item | Part number | Description |
|---|---|---|
| 1 | 17044731 | HEXAGON NUT M8 |
| 2 | 4896952 | COVER |
| 3 | 16747224 | STUD M8X1,25X50 MM |
| 4 | 4890700 | FLAT ENGINE GASKET |
| 5 | 4897040 | HIGH PRESSURE PUMP ASSY |
| 10 | 504041278 | SPACING BAR ASSY |
| 11 | 17285381 | O-RING |
| 12 | 4893389 | INJ.PUMP DRIV.GEA |
| 13 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
| 14 | 5801382396 | PUMP HIGHT PRESSURE |
