N45MNAM10.00

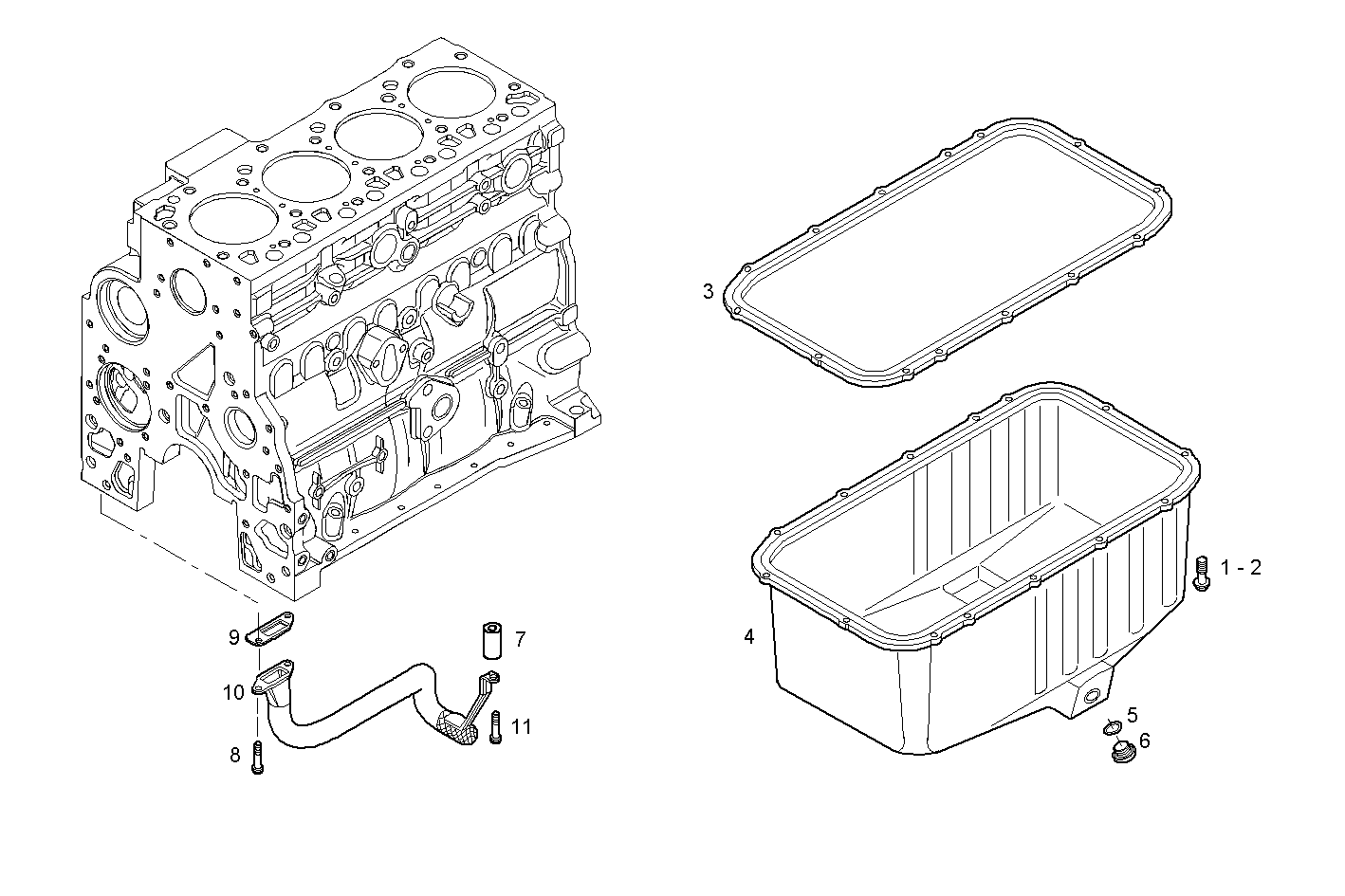

0420.208 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4895489 | HEXAGON BOLT |
| 2 | 4899091 | HEXAGON BOLT |
| 3 | 504069777 | OIL SUMP GASKET |
| 4 | 504051886 | OIL SUMP |
| 5 | 4895584 | O-RING |
| 6 | 4894139 | THREADED PLUG M22X1,5 |
| 7 | 504062812 | SPACING BAR |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 4898301 | FLAT ENGINE GASKET |
| 10 | 504051893 | SUCTION STRAINER |
| 11 | 16599024 | HEXAGON BOLT M10X120 MM |
