N45MNAM10.00

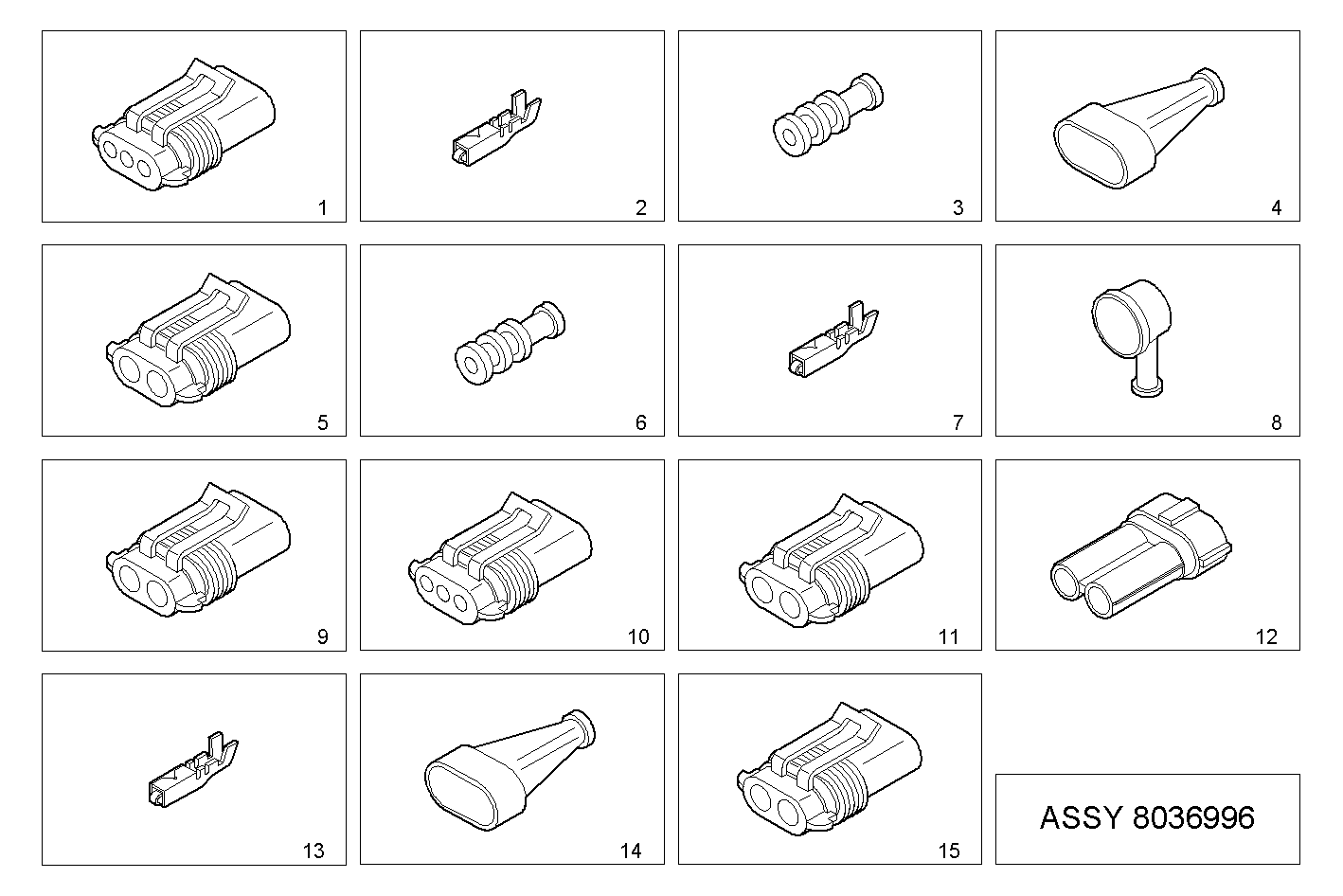

8330.004 ENGINE ELECTRIC WIRING (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 98435344 | WIRE CONNECTOR 3 pin female |
| 2 | 98435372 | TERMINAL |
| 3 | 4861936 | RUBBER BUSH YELLOW |
| 4 | 12039287 | CAP |
| 5 | 98435346 | WIRE CONNECTOR 2 pin female |
| 6 | 500382761 | RUBBER BUSH BLUE |
| 7 | 12331654 | TERMINAL |
| 8 | 10405485 | CAP |
| 9 | 8113135 | TERMINAL |
| 10 | 12331487 | CONNECTION |
| 11 | 12331387 | CONNECTION |
| 12 | 12332387 | CONNECTION |
| 13 | 12331744 | TERMINAL |
| 14 | 12039187 | CAP |
| 15 | 12417787 | CONNECTION |
