N45MNAM10.00

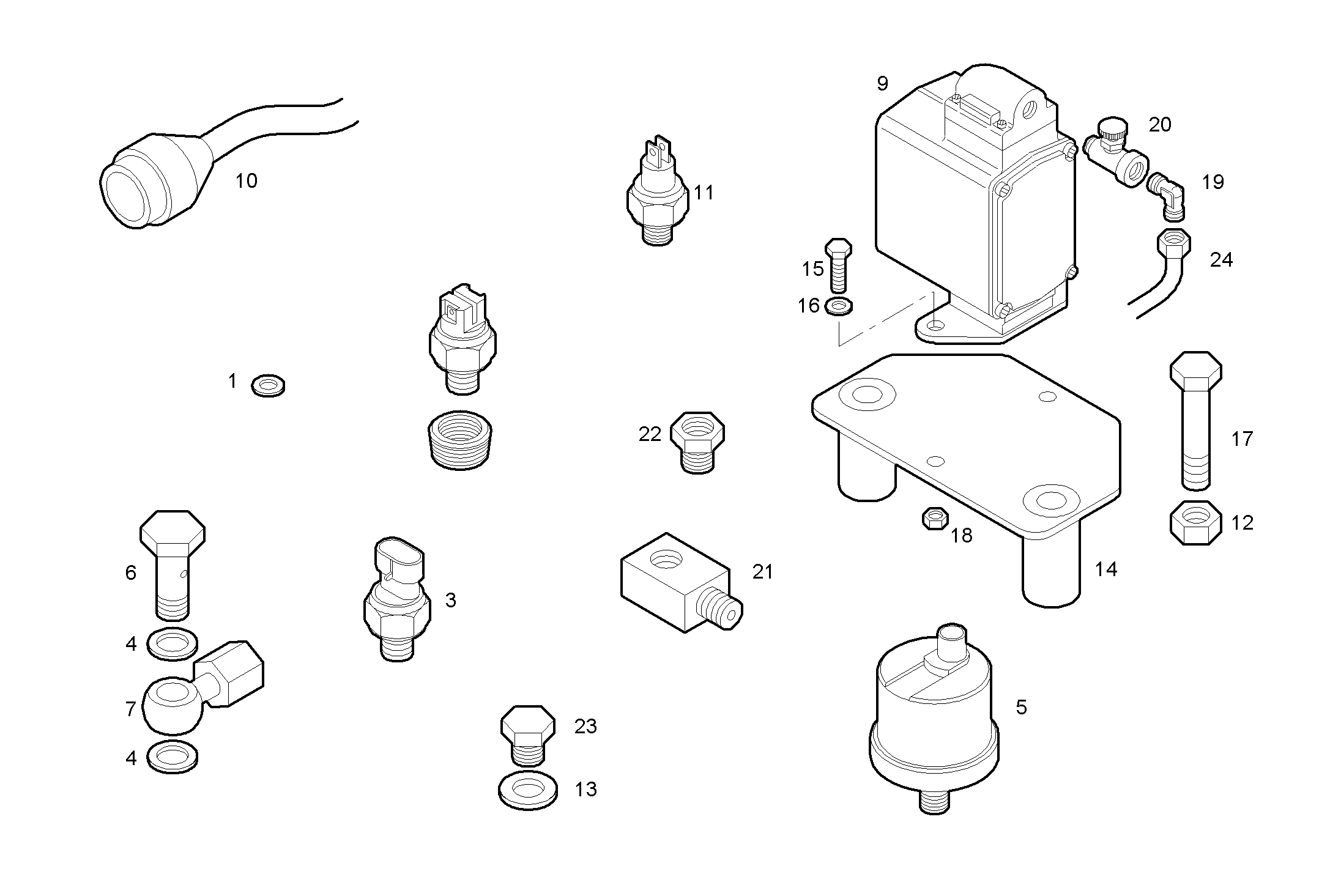

A16030506 SENDERS - R.I.NA
| Item | Part number | Description |
|---|---|---|
| 1 | 16507311 | WASHER Ø6 MM |
| 2 | 8033022 | PIPE SOCKET |
| 3 | 8019334 | TRANSMITTER IATA |
| 4 | 98474308 | SEAL GASKET Ø14X22 MM |
| 5 | 8100417 | TRANSMITTER TPO |
| 6 | 61608319 | SCREW CONNECTOR |
| 7 | 8040045 | PIPE SOCKET |
| 8 | 8114030 | TRANSMITTER IBPO |
| 9 | 8038419 | PRESSURE SWITCH |
| 10 | 8034358 | EXTENSION |
| 11 | 8100418 | TRANSMITTER TTA |
| 12 | 16506611 | UNION NUT |
| 13 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 14 | 8039834 | RETAINER |
| 15 | 16603524 | SCREW M6X12 MM (8.8) |
| 16 | 17088474 | WASHER Ø6X12 MM |
| 17 | 16588824 | HEXAGON BOLT M12X1,75X70 MM |
| 18 | 17044621 | HEXAGON NUT M6 |
| 19 | 8033819 | ELBOW COUPLING |
| 20 | 8033959 | RETAINER COCK |
| 21 | 8032383 | PIPE SOCKET M14X1,5 |
| 22 | 8038803 | PIPE SOCKET |
| 23 | 16992311 | LOCK PLUG M14X1,5 |
| 24 | 8041312 | OIL LINE |
