N45MNAM10.00

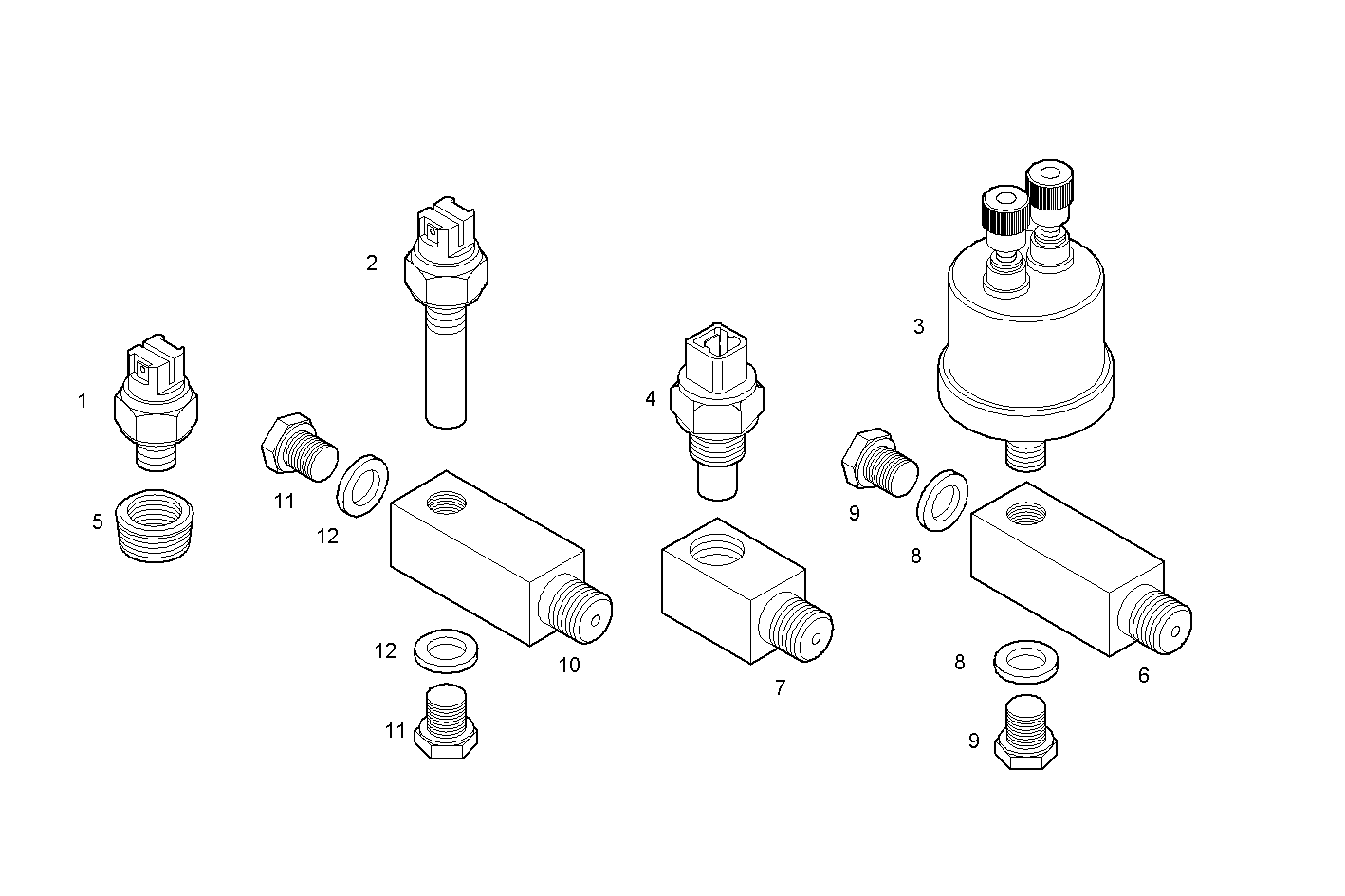

A38560503 SENDER UNITS ALARMS INSTRUMENT - 12/24V - double 12/24V - VDO
Item | Part number | Description |
---|---|---|
1 | 8114030 | TRANSMITTER IBPO |
2 | 8046585 | TRANSMITTER |
3 | 503110072 | TRANSMITTER TPO - double |
4 | 8031886 | TRANSMITTER TTA - TTO |
5 | 8033022 | PIPE SOCKET |
6 | 8038680 | PIPE SOCKET M10 |
7 | 8034938 | PIPE SOCKET |
8 | 16550760 | GASKET Ø10X13,5 MM SP=1 |
9 | 16992111 | THREADED PLUG M10X1 |
10 | 8039492 | PIPE SOCKET M12 |
11 | 16992211 | THREADED PLUG M12X1,5 |
12 | 16508060 | SEAL GASKET Ø12X15,5 MM |
