N45MNAM10.01

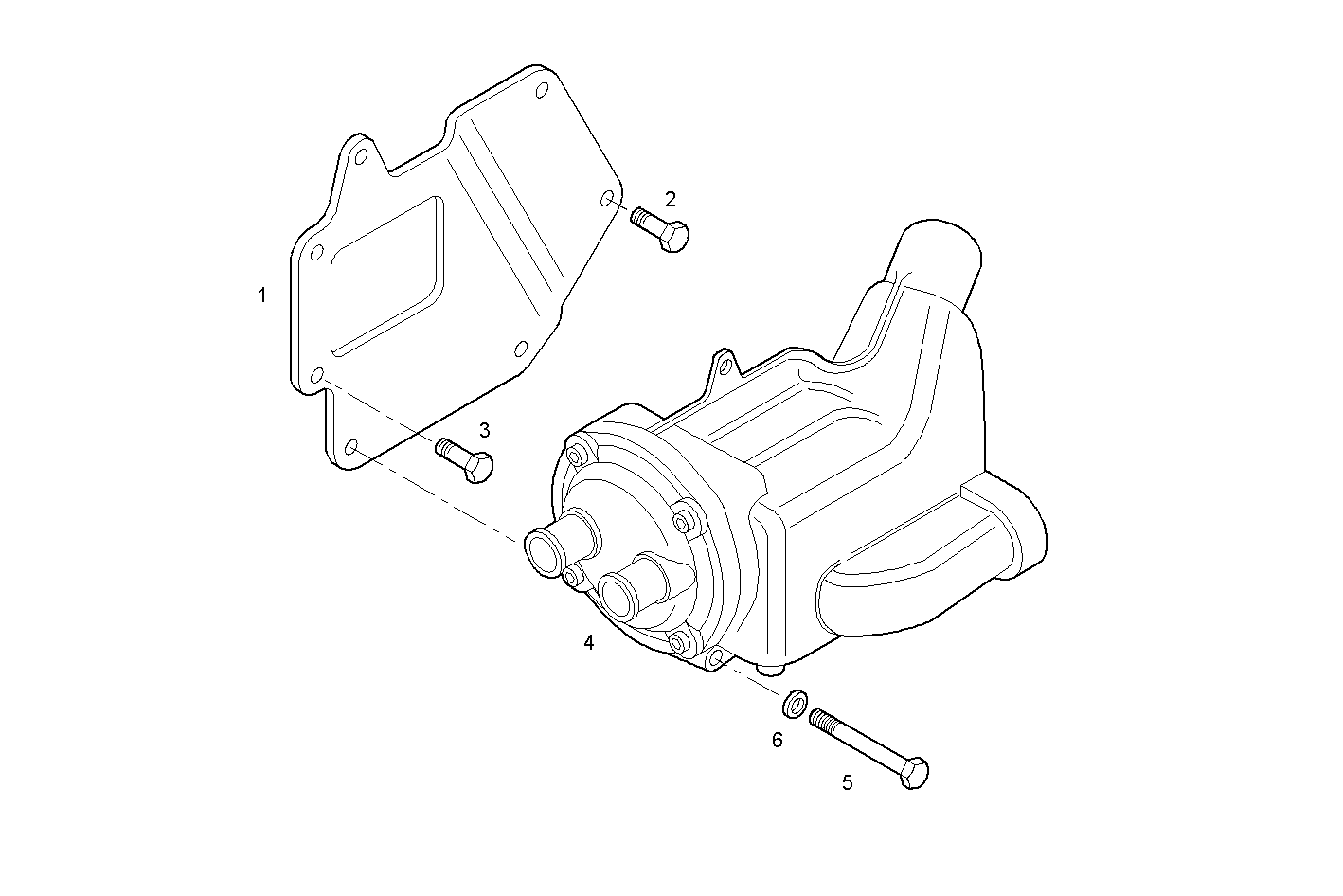

3370.044 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8036205 | SUPPORT |
| 2 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 3 | 18139424 | HEXAGON BOLT M10X20 MM |
| 4 | 8036074 | WATER/SEA WATER HEAT EXCH ASSY |
| 5 | 16045424 | SCREW M8X110 MM |
| 6 | 17094914 | WASHER 8x16 |
