N45MNAM10.01

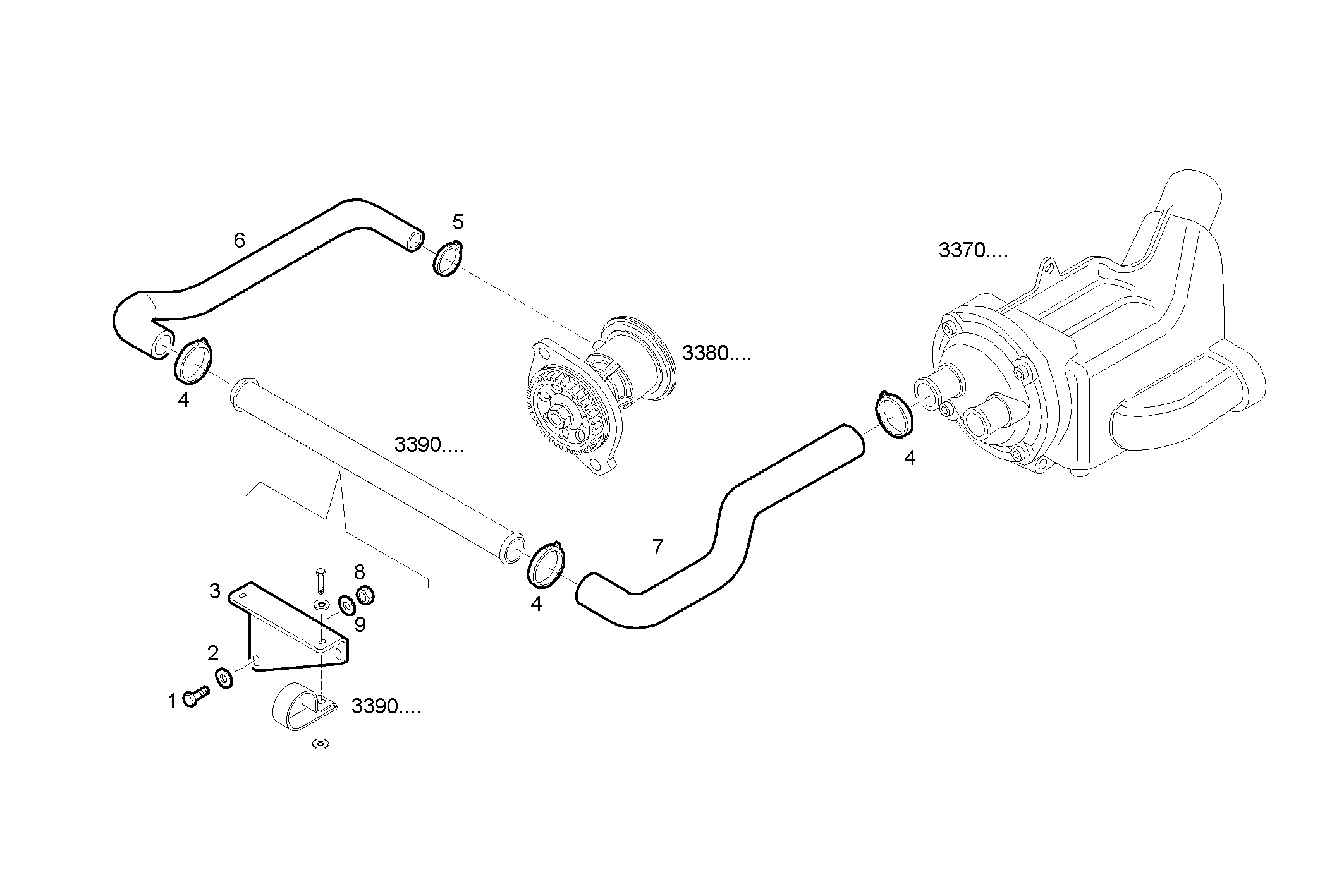

3390.091 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16587125 | HEXAGON BOLT M10X25 MM |
| 2 | 4932695 | WASHER |
| 3 | 8039259 | RETAINER |
| 4 | 17764793 | CLIP Ø32/50 MM |
| 5 | 17764893 | CLIP Ø40/60 MM |
| 6 | 8043324 | RUBBER SLEEVE |
| 7 | 8039367 | RUBBER SLEEVE |
| 8 | 17038131 | HEXAGON NUT M10 |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
