N45MNAM10.01

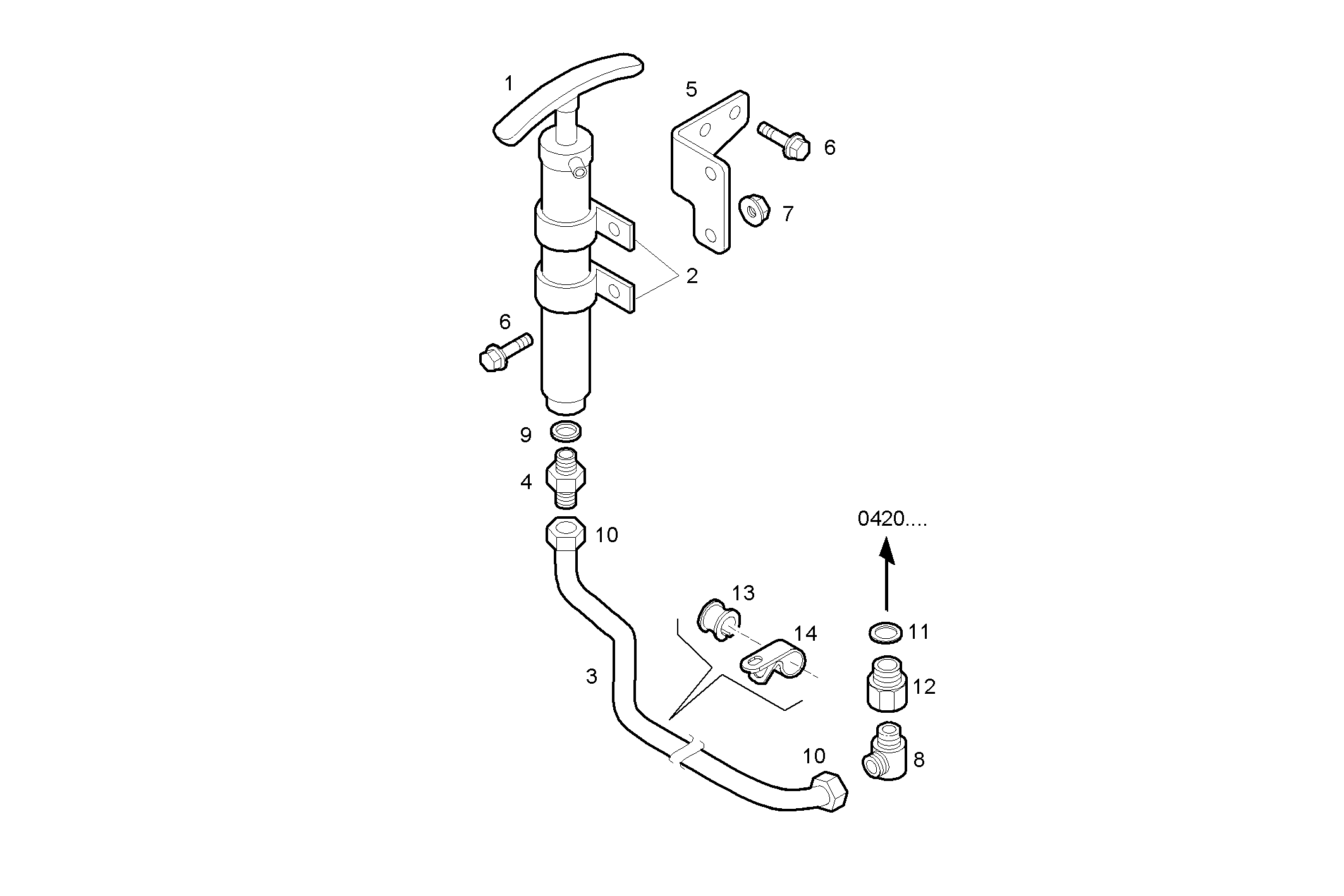

5510.053 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 8038555 | FASTENING BRACKET |
| 3 | 8039490 | OIL LINE ASSY |
| 4 | 16500315 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 8039238 | FASTENING BRACKET |
| 6 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 7 | 17044725 | HEXAGON NUT M8 |
| 8 | 11219711 | ELBOW COUPLING |
| 9 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 10 | 16506915 | NUT M18X1,5 |
| 11 | 16508460 | WASHER 22x27x1,5 |
| 12 | 4919578 | PIPE SOCKET M22X1,5/M16X1,5 |
| 13 | 4755964 | RUBBER PAD |
| 14 | 4755963 | FASTENING BRACKET |
