N45MNAM10.02

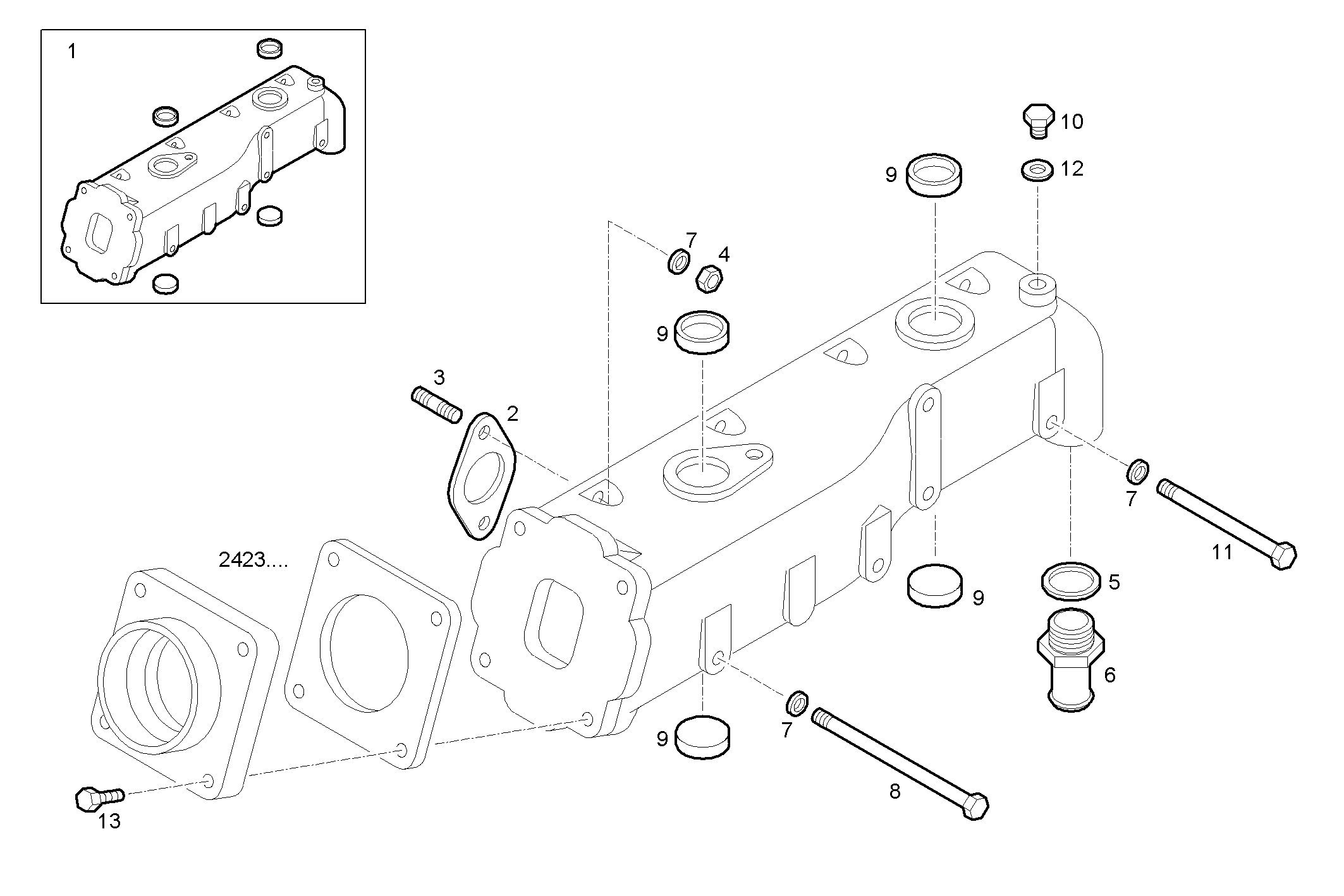

0780.051 EXHAUST MANIFOLD - assy
| Item | Part number | Description |
|---|---|---|
| 1 | 8042313 | COOLED EXHAUST MANIF. |
| 2 | 504081248 | EXH. MANIFOLD GKT |
| 3 | 16731324 | STUD M10X30 MM |
| 4 | 17042631 | NUT M10X1,5 (10) |
| 5 | 99434480 | SEAL GASKET Ø30X40 MM |
| 6 | 8024797 | PIPE SOCKET M30X1,5 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 16629234 | SCREW M10X1,5X150 |
| 9 | 16991170 | LOCK PLUG Ø36 MM |
| 10 | 16992211 | THREADED PLUG M12X1,5 |
| 11 | 16629034 | HEXAGON BOLT M10X130 MM |
| 12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 13 | 16587125 | HEXAGON BOLT M10X25 MM |
