N45MNAM10.30

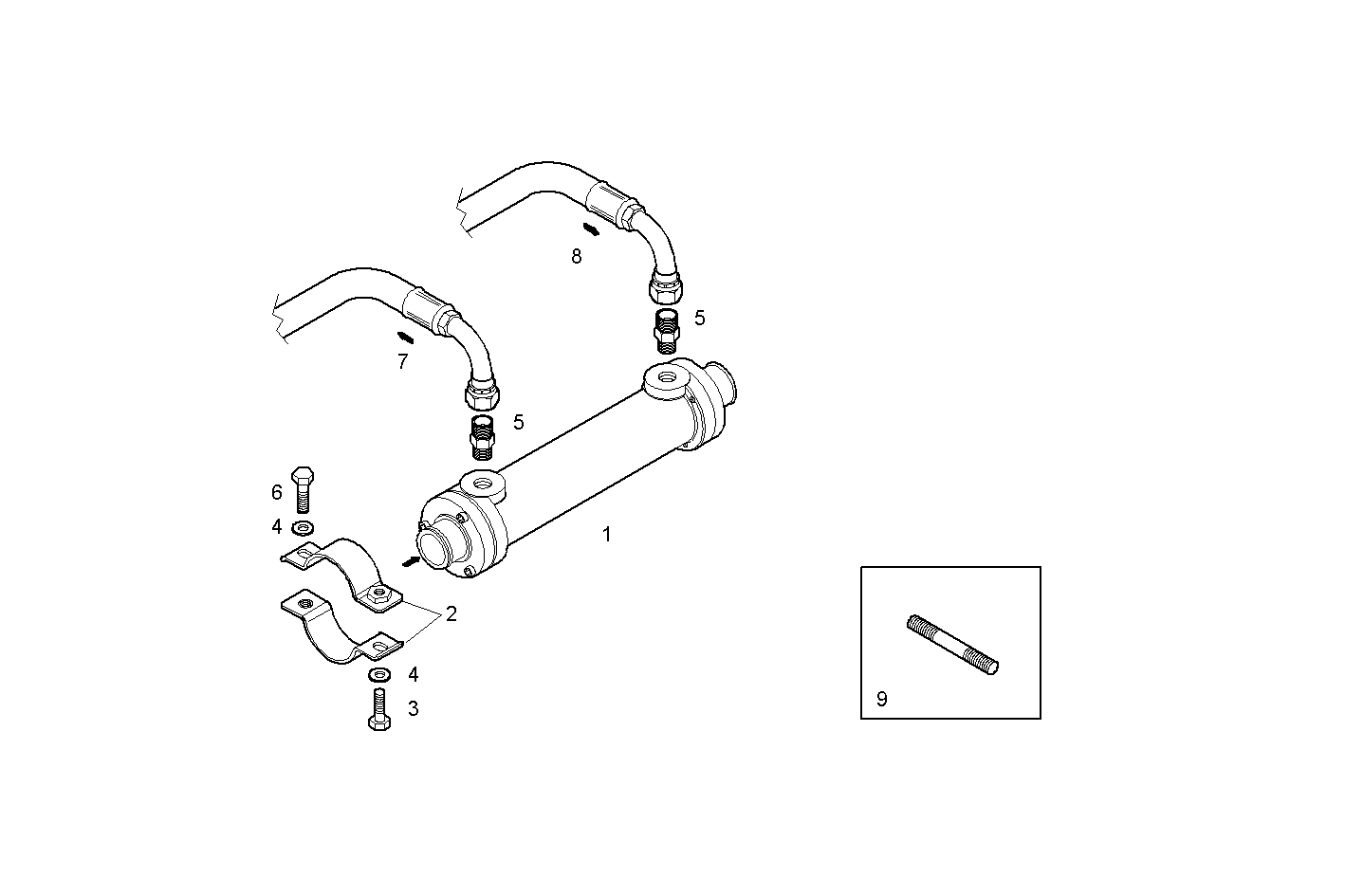

A51050504/01 MARINE GEAR - TM 170 A ratio 1.53:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
| 2 | 8039731 | CLIP |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8101073 | PIPE SOCKET |
| 6 | 16605734 | HEXAGON BOLT M8X30 MM |
| 7 | 4935779 | HOSE |
| 8 | 8105620 | HOSE |
| 9 | 17368024 | STUD M10X25X30 |
