N45MNAM10.30

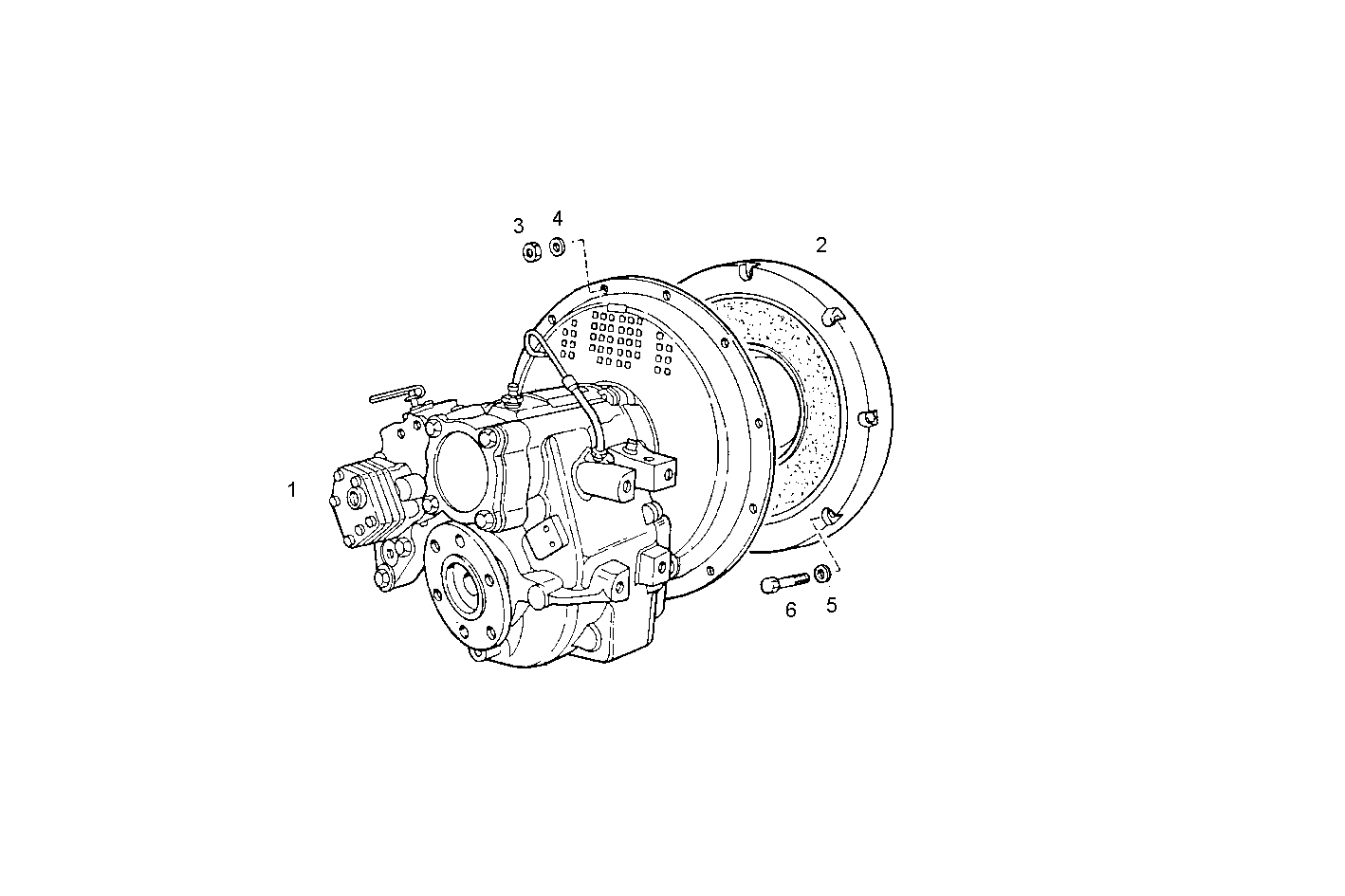

A51050504/03 MARINE GEAR - TM 170 A ratio 1.53:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8039964 | MARINE GEAR |
| 2 | 8019065 | FLEXPLATE |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17038125 | NUT M10 |
| 5 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 6 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
