N45MNSE00.00

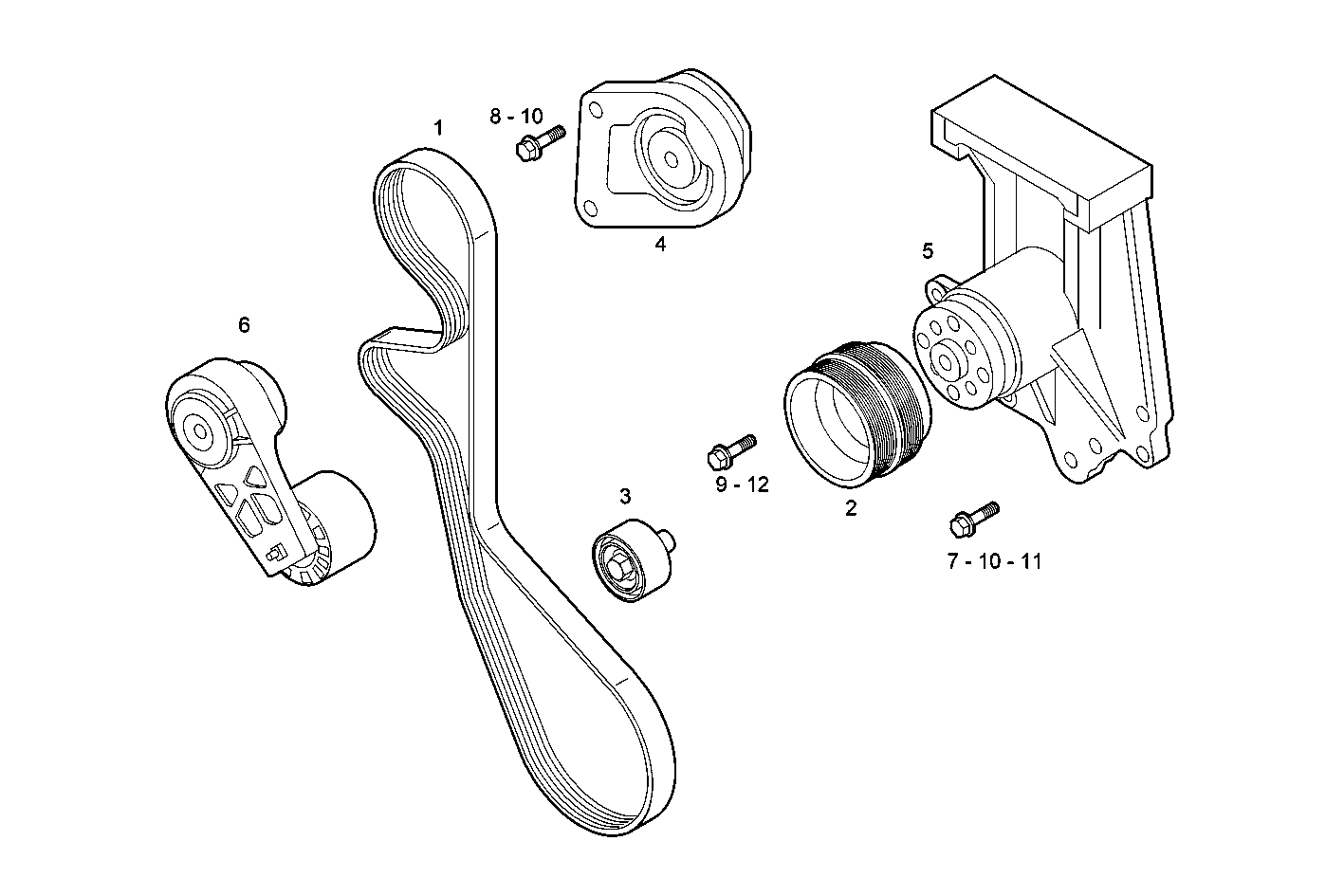

A08250501 PREARRANGEMENT FOR FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 50038760 | V-BELT |
| 2 | 4899155 | PULLEY |
| 3 | 500390511 | PULLEY |
| 4 | 504044558 | SUPPORT |
| 5 | 4893217 | SUPPORT |
| 6 | 504028028 | BELT TENSIONER |
| 7 | 4895323 | HEXAGON BOLT [UP TO 26-11-07] |
| 8 | 4895292 | HEXAGON BOLT M10X1,5X70 MM |
| 9 | 16587125 | HEXAGON BOLT M10X25 MM |
| 10 | 16587525 | HEXAGON BOLT M10X45 MM |
| 11 | 16673835 | HEXAGON BOLT M8X30 MM |
| 12 | 4899032 | HEXAGON BOLT M10X25 MM |
