N45MNSF40.10

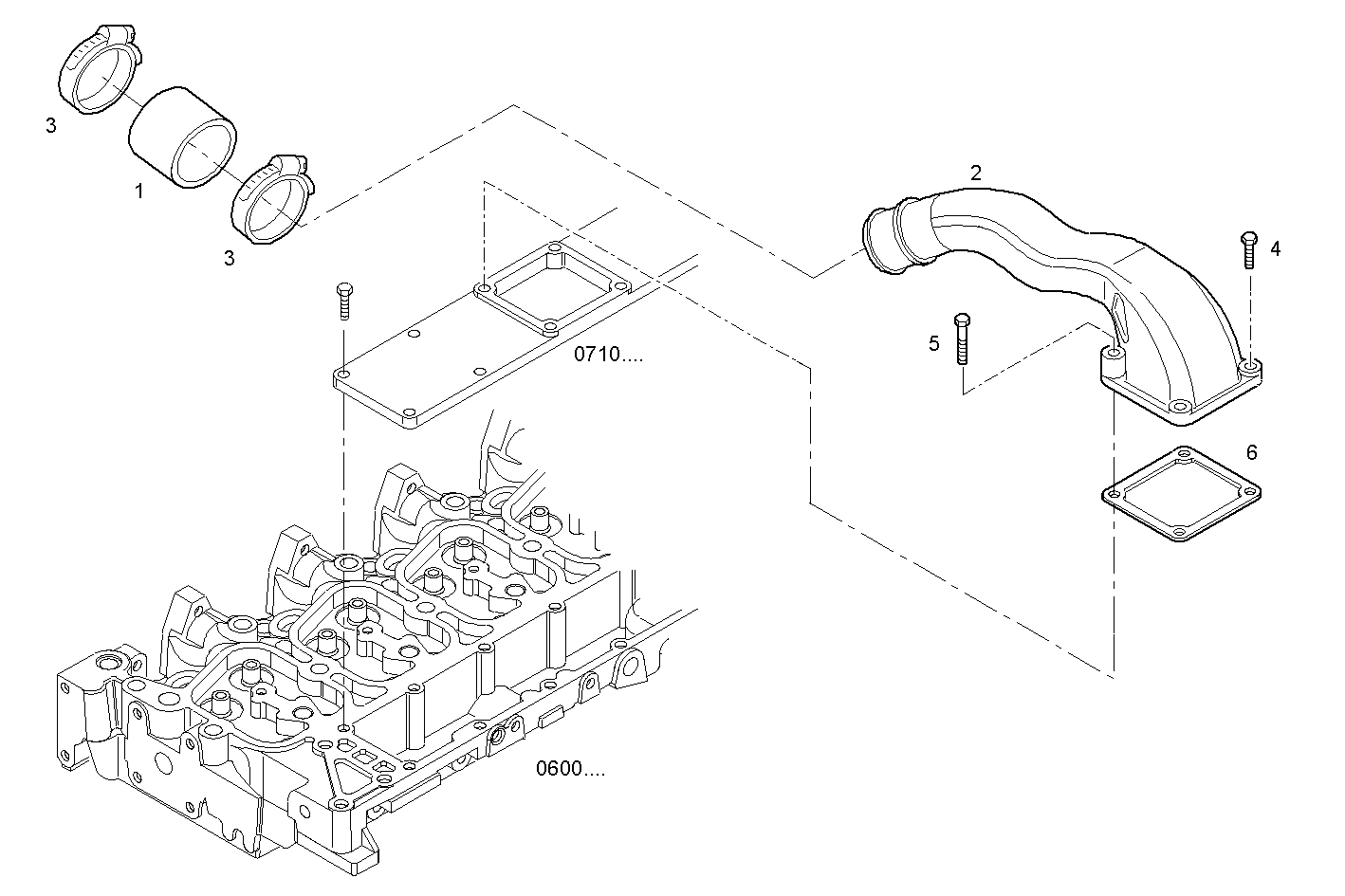

0715.016 ENGINE AIR INTAKE
| Item | Part number | Description |
|---|---|---|
| 1 | 504072912 | RUBBER SLEEVE |
| 2 | 504072911 | AIR MANIFOLD |
| 3 | 17765091 | CLIP Ø60/80 MM |
| 4 | 16598625 | HEXAGON BOLT M8X1,25X140 MM |
| 5 | 16598224 | HEXAGON BOLT M8X90 MM |
| 6 | 4899921 | FLAT ENGINE GASKET |
