N45MNSI00.00A002

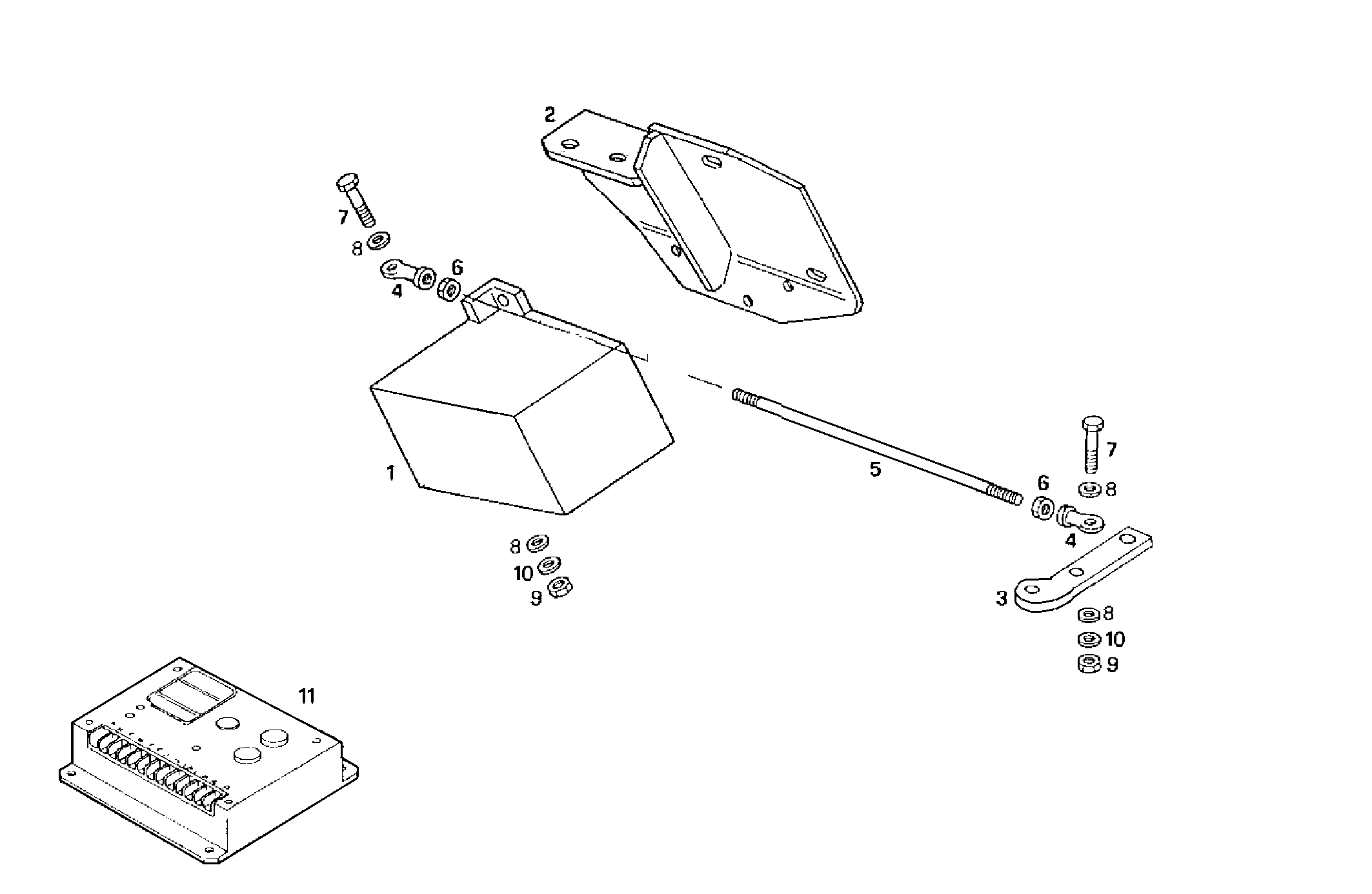

A28110501 ELECTRONIC GOVERNOR G.A.C. - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8021744 | ENGINE ACTUATOR ASSY |
| 2 | 8038700 | SUPPORT |
| 3 | 8026302 | ACCELERATOR PEDAL |
| 4 | 4934541 | BRACE/STRUT |
| 5 | 8037633 | TIE ROD |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 10902633 | HEXAGON BOLT M6X1X25 MM |
| 8 | 17094724 | WASHER Ø6X12 MM |
| 9 | 17152721 | NUT M6 |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 8017472 | SPEED CONTROL GAC-HUGLI 12V |
