N45MNSI00.00A002

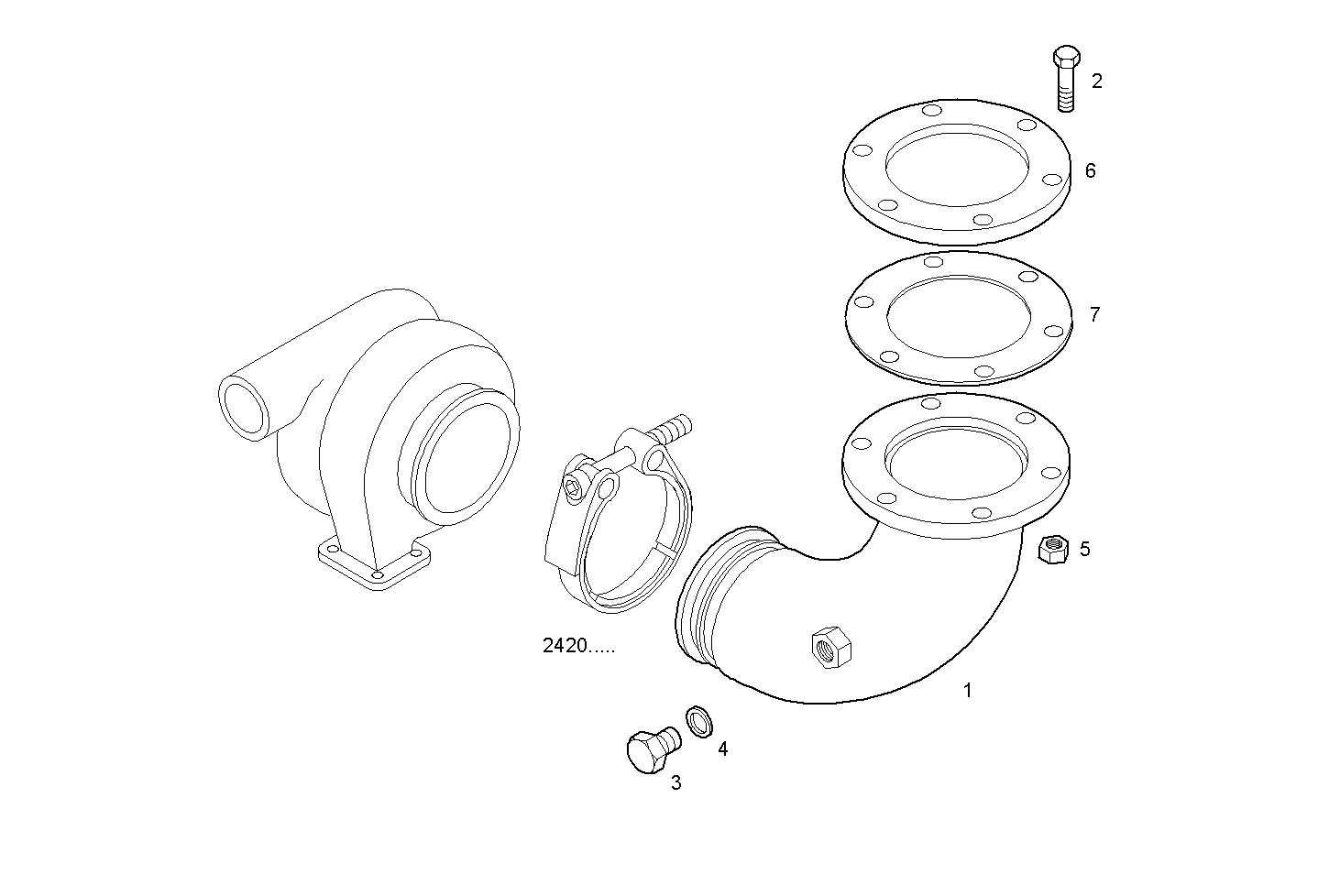

A40110501 TURNING EXHAUST ELBOW
Item | Part number | Description |
---|---|---|
1 | 8033835 | EXHAUST ELBOW |
2 | 16673835 | HEXAGON BOLT M8X30 MM |
3 | 16992211 | THREADED PLUG M12X1,5 |
4 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
5 | 17044725 | HEXAGON NUT M8 |
6 | 4919183 | FLANGE |
7 | 8009606 | GASKET |
