N45MNSX02.00

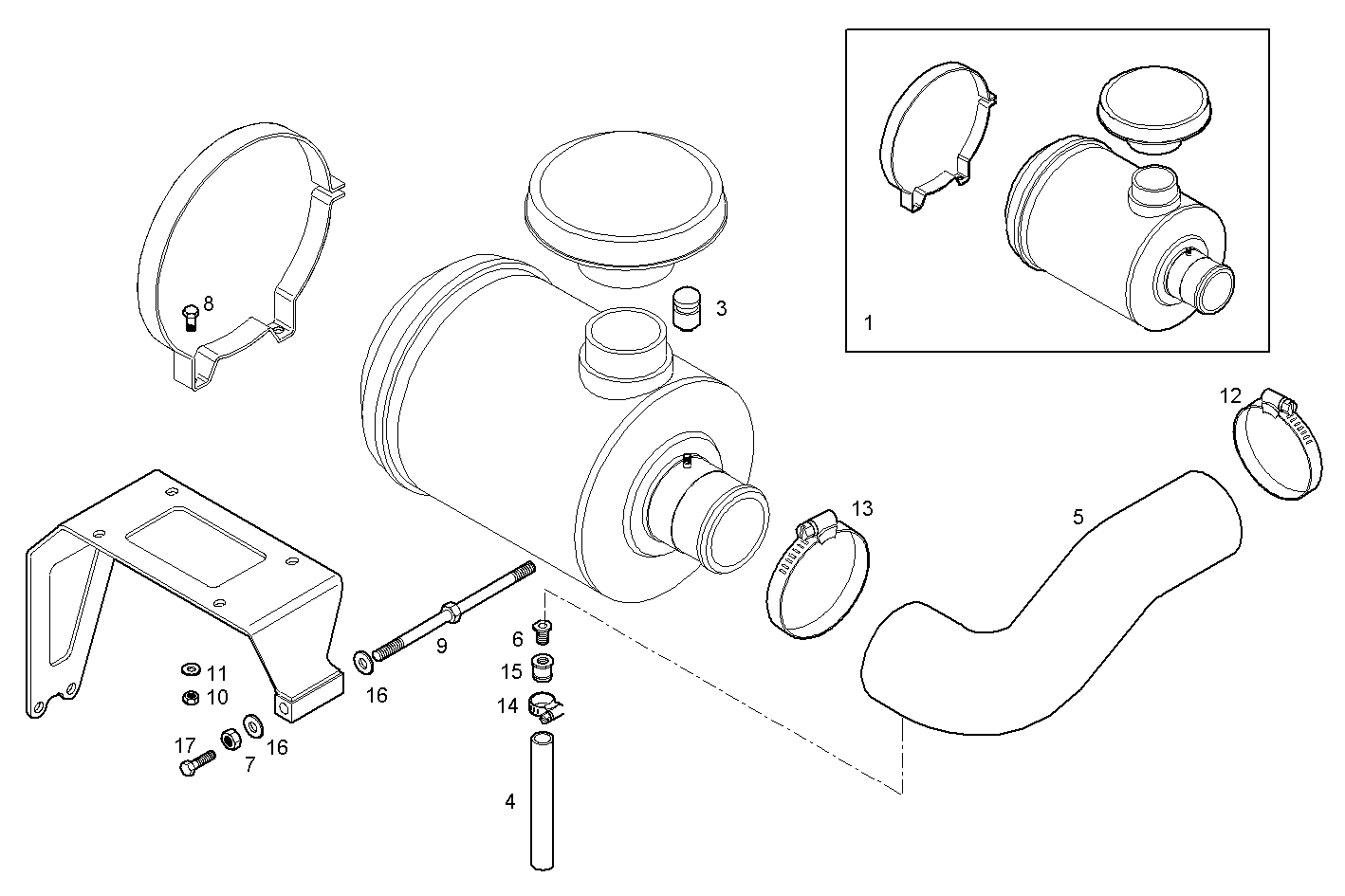

A21210507 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8031382 | AIR CLEANER ASSY |
| 2 | 8033561 | FILTER SUPPORT |
| 3 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 4 | 8035226 | RUBBER SLEEVE |
| 5 | 8035228 | FILTER HOSE |
| 6 | 8015315 | PIPE SOCKET |
| 7 | 17038425 | HEXAGON NUT M12 (8) |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 8033548 | STUD [UP TO 31-08-06] |
| 10 | 17037925 | HEXAGON NUT M8X1,25 |
| 11 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 12 | 17765191 | CLIP Ø70/90 MM |
| 13 | 17765291 | CLIP Ø80/100 MM |
| 14 | 18088392 | CLIP Ø16/25 MM |
| 15 | 8036882 | PIPE SOCKET |
| 16 | 17091074 | WASHER Ø12X24X2,8 MM |
| 17 | 16599724 | HEXAGON BOLT M12X130 MM |
