N45MNSX02.00

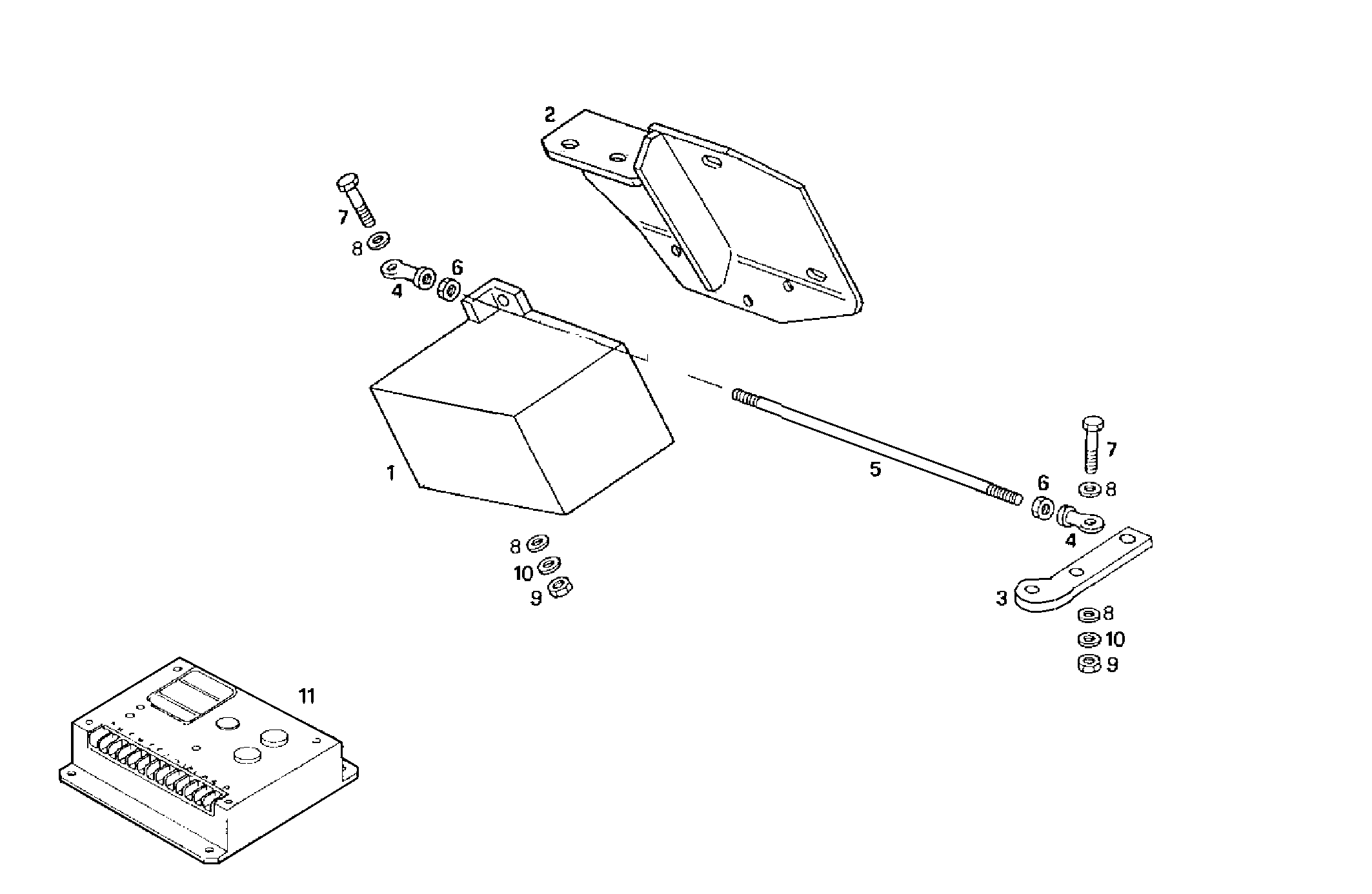

A28110501 ELECTRONIC GOVERNOR G.A.C. - 24V
Item | Part number | Description |
---|---|---|
1 | 8021744 | ENGINE ACTUATOR ASSY |
2 | 8038700 | SUPPORT |
3 | 8026302 | ACCELERATOR PEDAL |
4 | 4934541 | BRACE/STRUT |
5 | 8037633 | TIE ROD |
6 | 17037821 | HEXAGON NUT M6X1 |
7 | 10902633 | HEXAGON BOLT M6X1X25 MM |
8 | 17094724 | WASHER Ø6X12 MM |
9 | 17152721 | NUT M6 |
10 | 17088474 | WASHER Ø6X12 MM |
11 | 8017472 | SPEED CONTROL GAC-HUGLI 12V |
