N45MNTF40.10

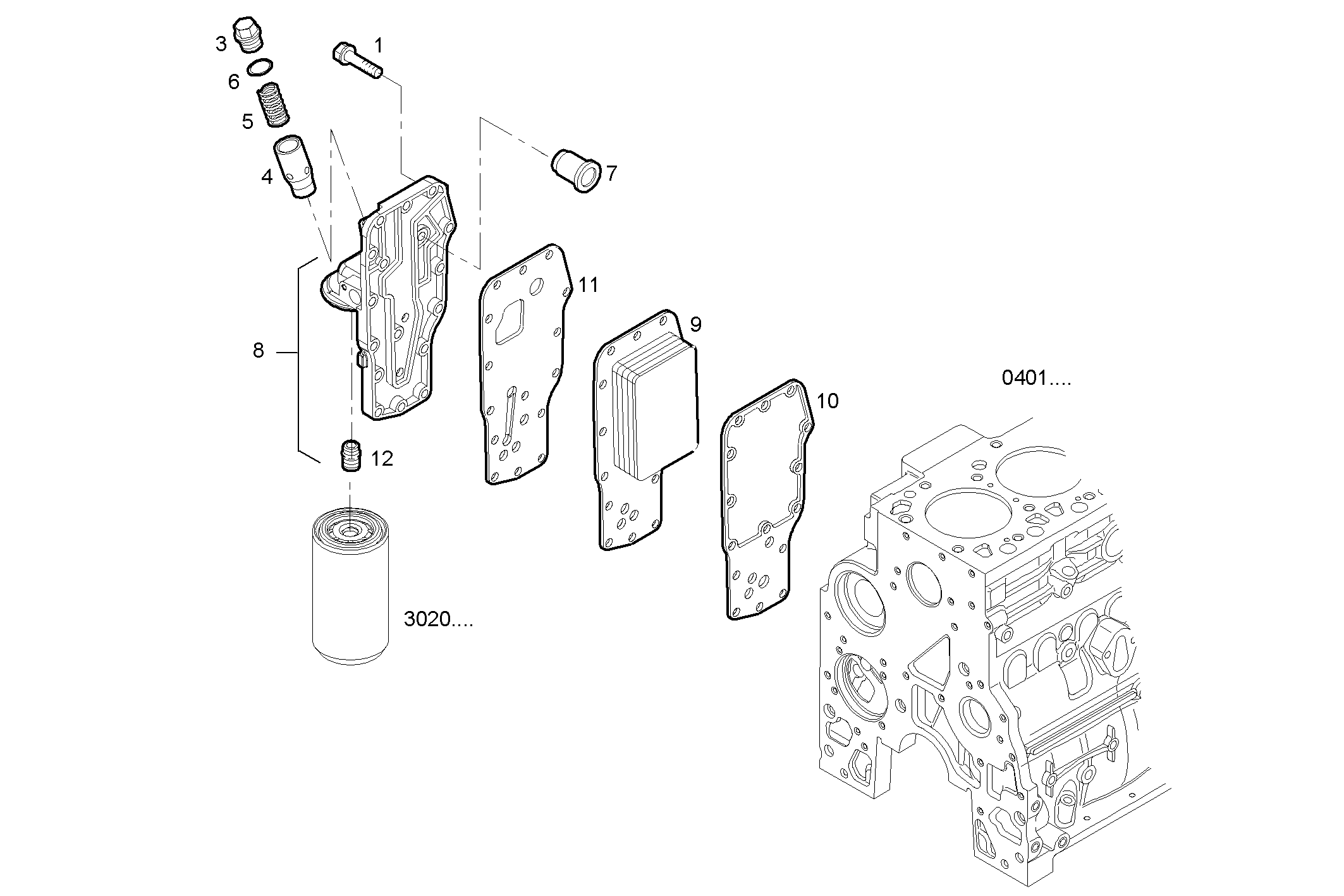

3150.000 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4899019 | HEXAGON BOLT M8X35 MM |
| 3 | 4895043 | THREADED PLUG |
| 4 | 4896404 | VALVE HOUSING |
| 5 | 4895045 | VALVE SPRING |
| 6 | 4899035 | O-RING |
| 7 | 4896410 | VALVE |
| 8 | 4899643 | HEAT EXANGER BODY ASSY |
| 9 | 504047629 | OIL COOLER |
| 10 | 2830559 | FLAT ENGINE GASKET |
| 11 | 4896409 | FLAT ENGINE GASKET |
| 12 | 4893391 | THREADED UNION |
