N45MNTF40.10

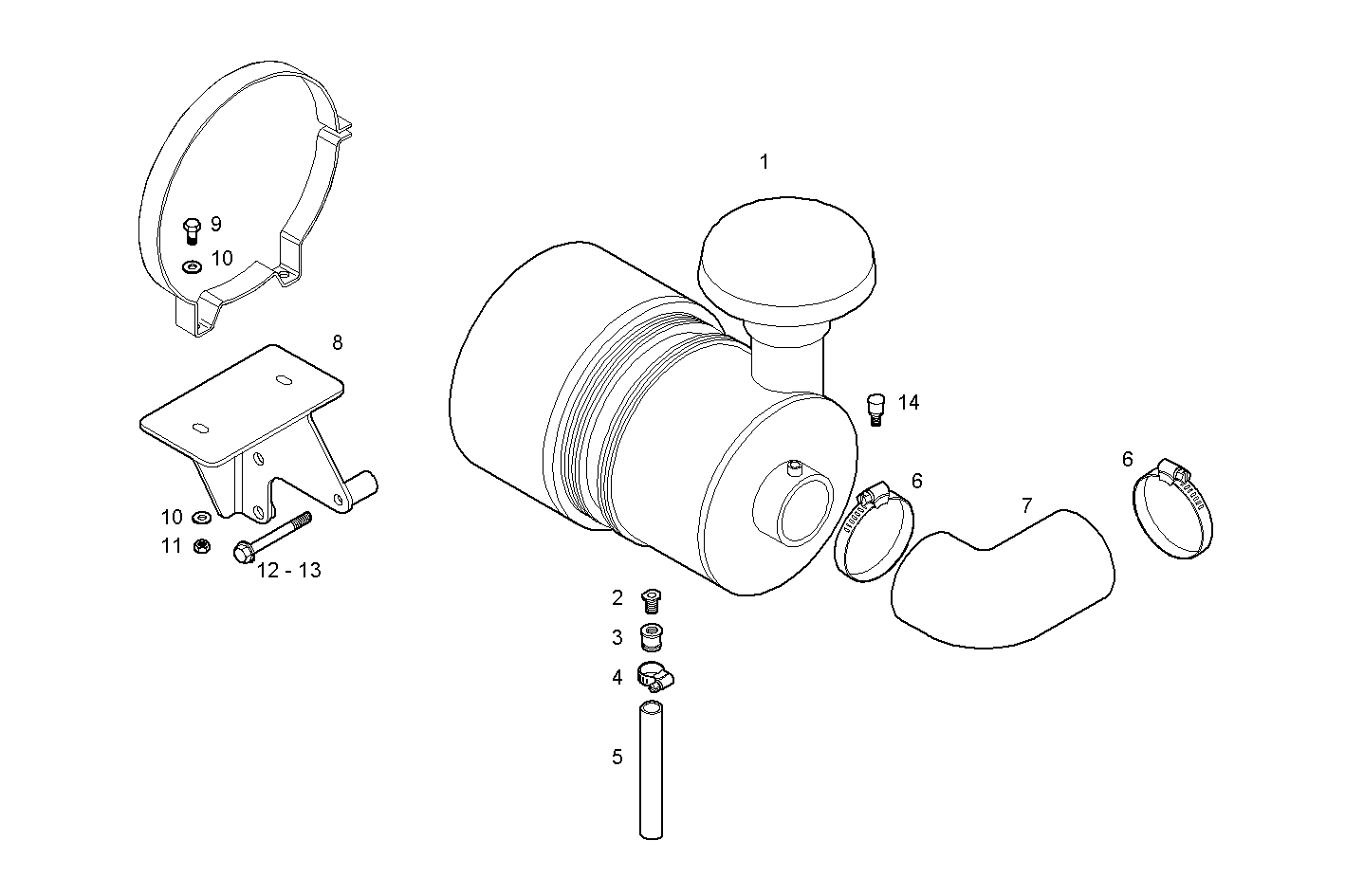

A21220503 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8041319 | AIR CLEANER ASSY |
| 2 | 8015315 | PIPE SOCKET |
| 3 | 8036882 | PIPE SOCKET |
| 4 | 18088392 | CLIP Ø16/25 MM |
| 5 | 8035724 | RUBBER SLEEVE [UP TO 18-12-06] |
| 6 | 17765491 | CLIP Ø70/90 MM |
| 7 | 8041192 | FILTER HOSE |
| 8 | 8041188 | SUPPORT |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17089874 | WASHER Ø8X22 MM |
| 11 | 17037925 | HEXAGON NUT M8X1,25 |
| 12 | 16599724 | HEXAGON BOLT M12X130 MM |
| 13 | 16593025 | HEXAGON BOLT M10X90 MM |
| 14 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
