N45MNTF41.01

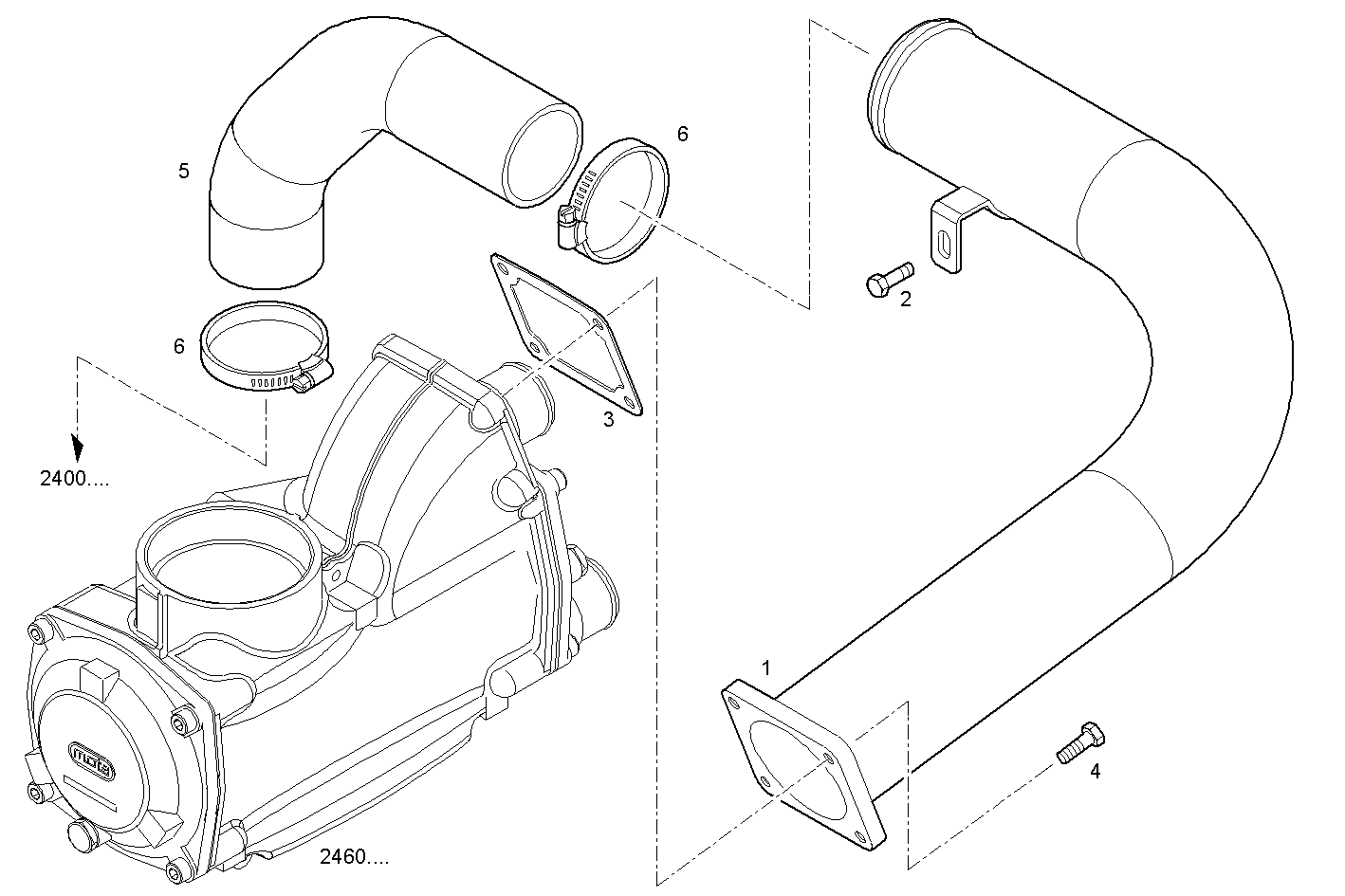

2430.047 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8046744 | AIR PIPE/DUCT |
| 2 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 3 | 8031907 | GASKET |
| 4 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
| 5 | 8046747 | RUBBER SLEEVE |
| 6 | 17765291 | CLIP Ø80/100 MM |
