N45MNTF41.01

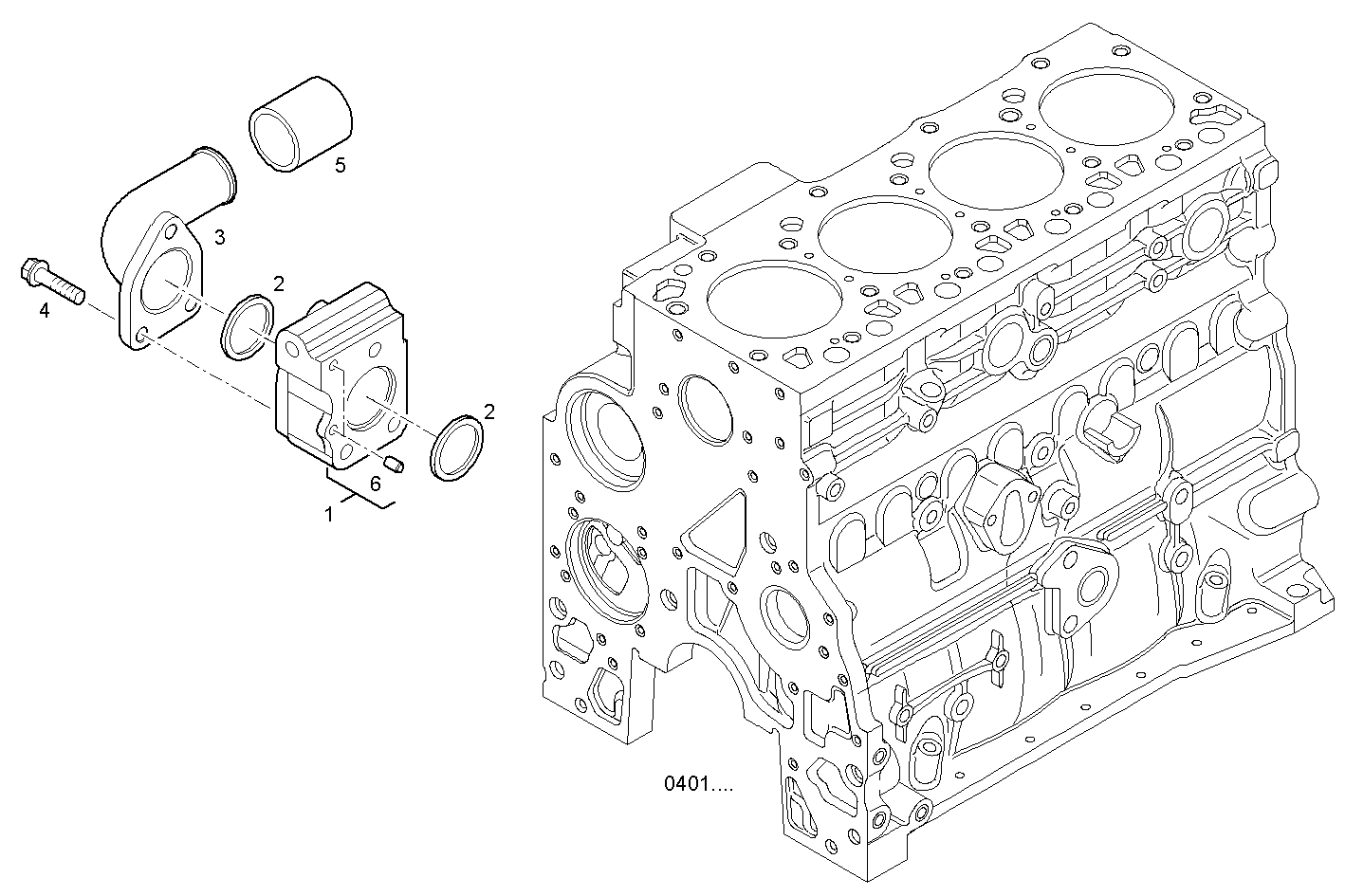

3230.062 WATER PIPE
Item | Part number | Description |
---|---|---|
1 | 8048841 | GENERATOR SUPPORT |
2 | 504062710 | WASHER |
3 | 8046733 | WATER PIPE |
4 | 16592925 | HEXAGON BOLT M10X80 MM |
5 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
6 | 504023030 | DOWEL PIN |
