N45MNTF41.01

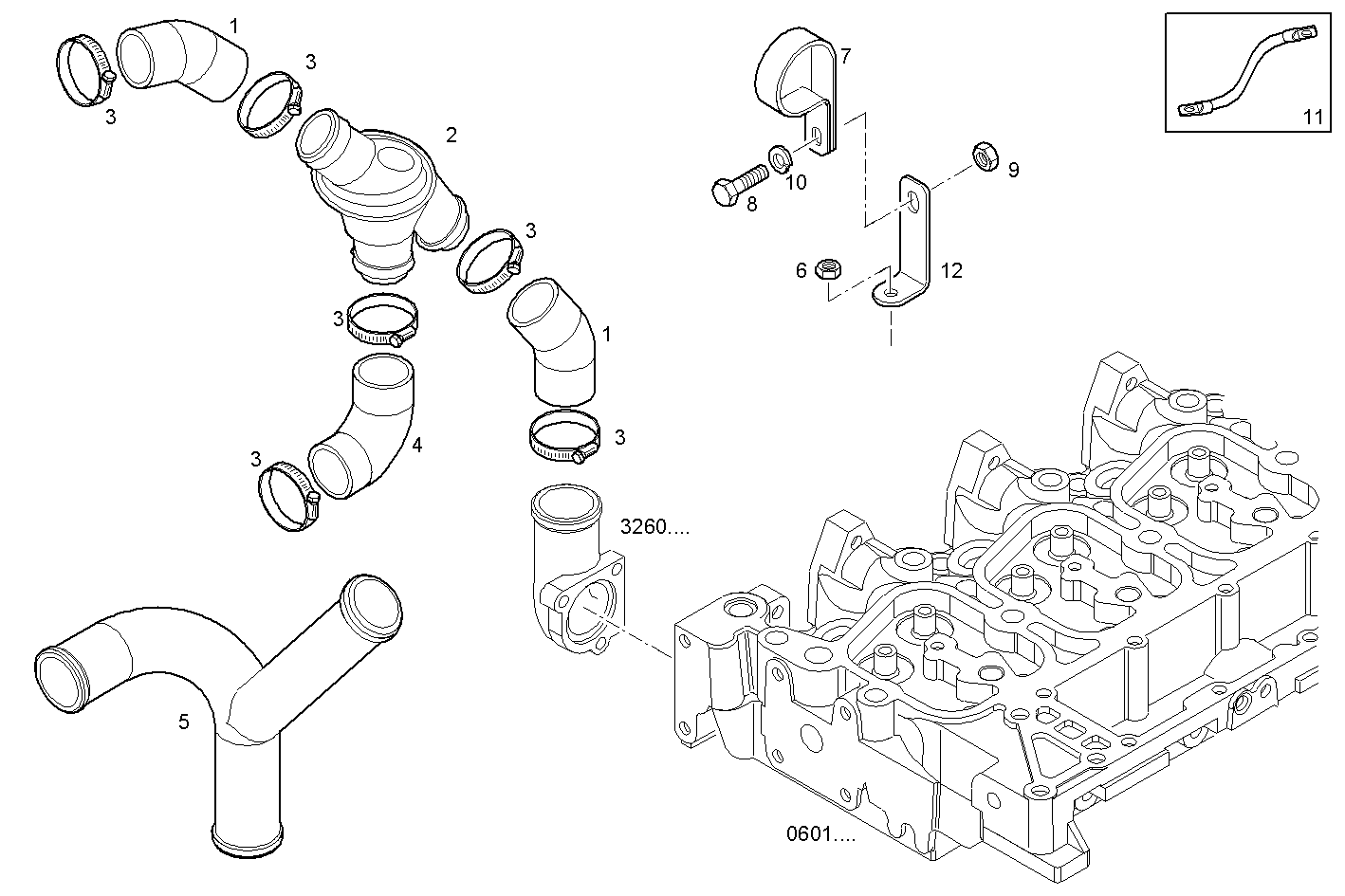

3263.014 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 8046734 | RUBBER SLEEVE |
| 2 | 42534386 | THERMOSTAT |
| 3 | 17764892 | PIPE CLIP Ø40-60 MM |
| 4 | 8048894 | RUBBER SLEEVE |
| 5 | 8050308 | WATER PIPE [FROM 10/04/08] |
| 5 | 8048896 | WATER PIPE [UP TO 09/04/08] |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 8034457 | CLIP |
| 8 | 18139424 | HEXAGON BOLT M10X20 MM |
| 9 | 17038131 | HEXAGON NUT M10 |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 8028456 | WIRE/CABLE |
| 12 | 8048910 | FASTENING BRACKET |
