N45MNTF41.10

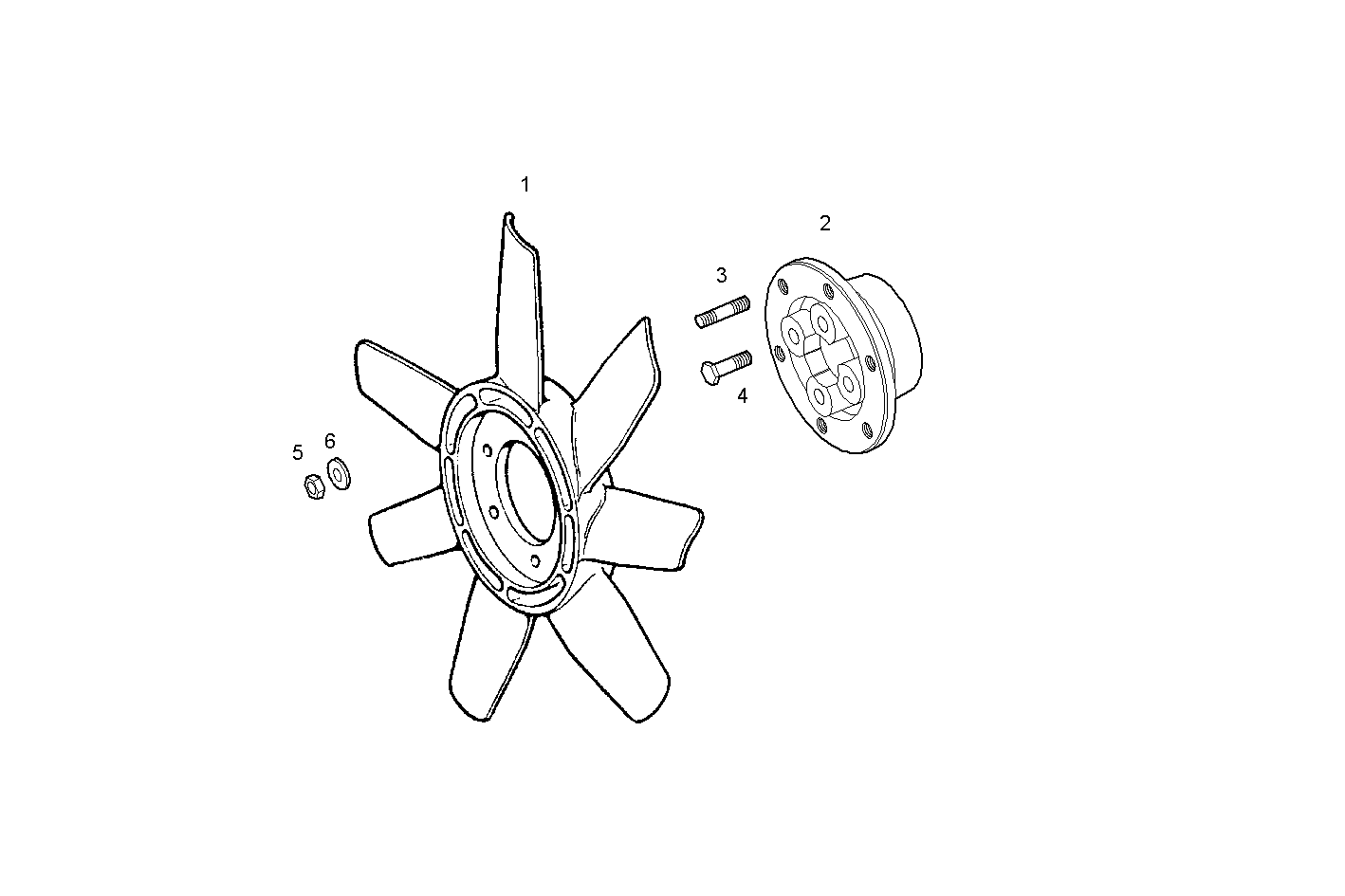

A08000505 PULLER FAN - dia. 500 - dist. H = 50
| Item | Part number | Description |
|---|---|---|
| 1 | 4698188 | BLOWER Ø500 MM |
| 2 | 8031591 | SPACING BAR |
| 3 | 16731324 | STUD M10X30 MM |
| 4 | 16587824 | HEXAGON BOLT M10X1,5X60 MM |
| 5 | 17038131 | HEXAGON NUT M10 |
| 6 | 17095004 | WASHER Ø10X18X2 MM |
