Catalogue Menu
N45MRAD00.50A001

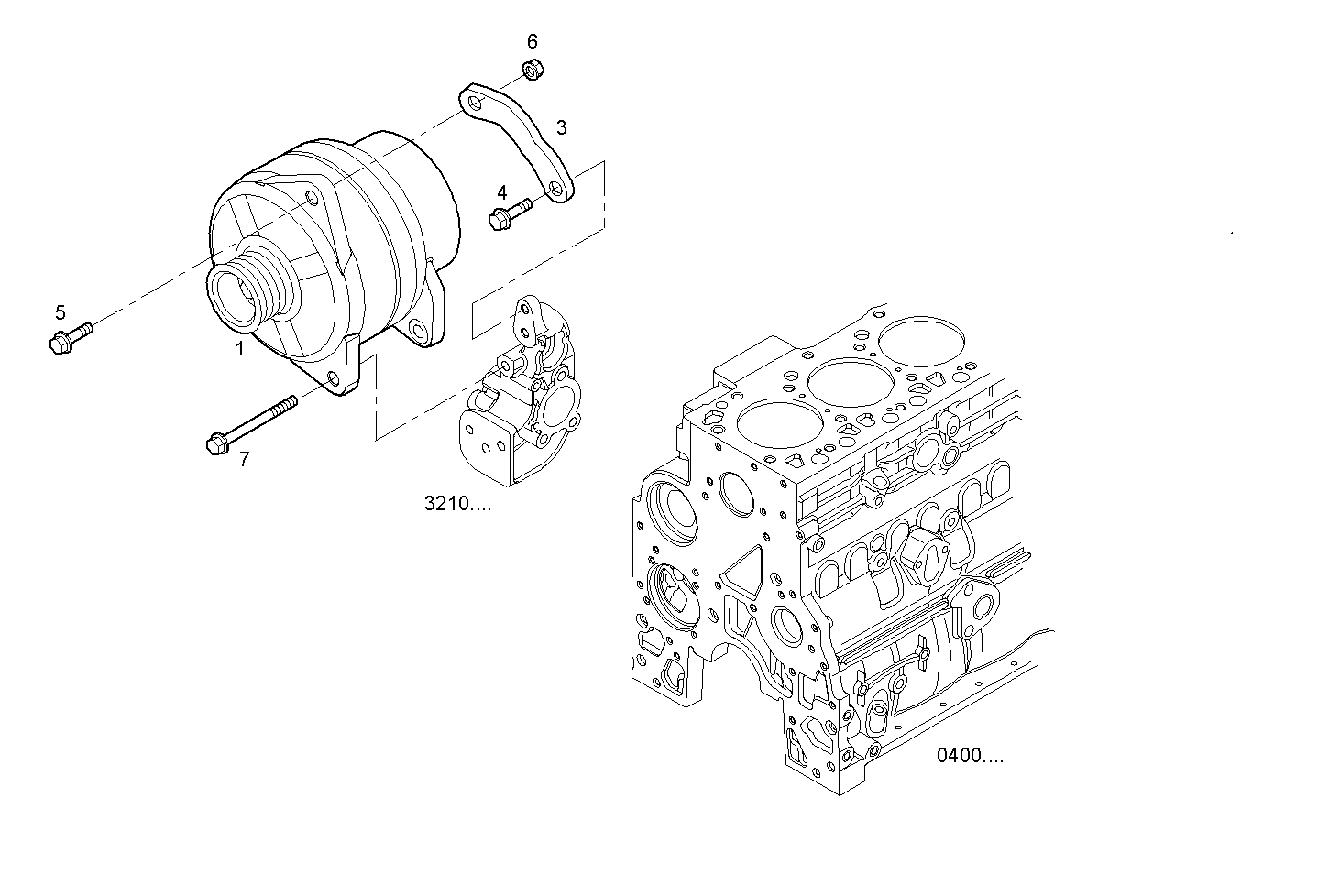

4000.208 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504010576 | ALTERNATOR ASSY |
| 3 | 8044619 | RETAINER |
| 4 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
| 5 | 16587325 | HEXAGON BOLT M10X35 MM |
| 6 | 17044821 | NUT M10 |
| 7 | 16599125 | HEXAGON BOLT M10X130 MM |
